Down-the-hole drill is a drilling equipment widely used in construction, mining, tunneling and other projects. Its main feature is that it drives the drill bit to drill holes through compressed air, which has the advantages of high efficiency, low noise and environmental protection.
Small down-the-hole drill rigs: small giants for efficient rock drilling
Small in size and light in weight, this mini dth drilling machine is suitable for places where large and medium-sized drilling rigs cannot operate. It is convenient and flexible. The down-the-hole drill uses electric energy as power, with low noise and strong power. The drilling speed is 3-8 times that of a general rock drill, the rock hardness reaches 9, and the drilling depth per hour is 8-16 meters.
Technical parameters of small rock th drilling rig
| Model | YGD70/YGD80 | YGD100 |
| Drilling Diameter | 50-90mm/90-120mm | 90-130mm |
| Apply Rock | ≥20 | ≥20 |
| Drilling Depth | 15m | ≥25m |
| Drilling rotate speed | 110r/min | 110r/min |
| Working air pressure | 0.5-0.7Mpa | 0.5-1.0Mpa |
| Air consumption | 4m³/min | 6m³/min |
| Cylinder Diameter | 90mm | 140mm |
| Propulsion Stroke | 1070mm | 1070mm |
| Max propelled force | 3600N/8000N | 9600N |
| Electric motor power | 3KW/4KW | 4KW |
| Electric motor voltage | 380V | 380V |
| Rated speed | 1440r/min | 1440r/min |
| Drilling rod OD | 42mm | 50-60mm |
| Drilling rod length | 1025mm | 1025mm |
| Dimension | 1.74*0.26*0.42m | 2.28*0.44*0.55m |
| Weight | 280/320KG | 470KG |

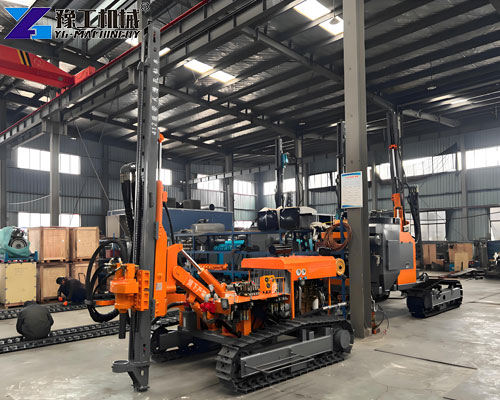

DTH Down the hole drilling machine for sale
This machine uses pneumatic or hydraulic drive, which can quickly drill into hard rock and significantly improve work efficiency.
The down-the-hole drill rig is not only suitable for mining, but are also widely used in infrastructure construction, tunnel construction, geological exploration and other fields.
Technical informations of down the hole drilling machine
| Model | YGS150 | YGS100A | YGS153 | YGS180 | YGS300 | YGS350 |
| Total Weight | 5.95T | 3.8T | 6.3T | 6.8T | 8T | 16T |
| Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.2/3.8km/h | 4km/h 2km/h | 2.5km/h |
| Diesel tank capacity | 85L | 70L | 85L | 85L | 225L | 210L |
| Shipping size | 6500*2110*2400mm | 4640*1980*2260mm | 6600*2110*2500mm | 6600*2220*2600mm | 7600*2350*2800mm | 7210*2200*2950mm |
| Drilling hole diameter | 90-146mm | 83-130mm | 90-146mm | 90-152mm | 90-165mm | 76-260mm |
| Power configuration | YCD4R22T-80 | YC2108 33kw/2400rpm | YCD4R22T-80 55kw | YC4DK80-T302 | YC4DK100-T304 73.5kw/2200rpm | YCD4R22T-80 132kw/2200rpm |
| Highest horizontal hole height | 3.2m | 2.8m | 3.6m | 3.25m | 3.5m | 3.2m |

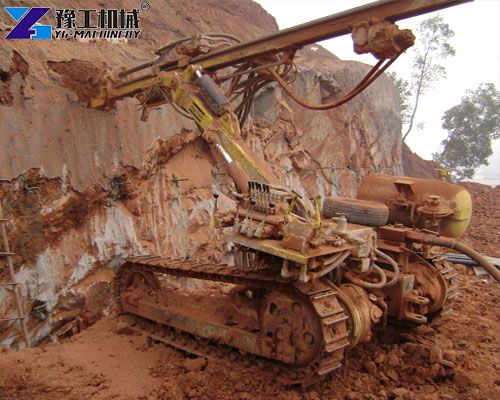

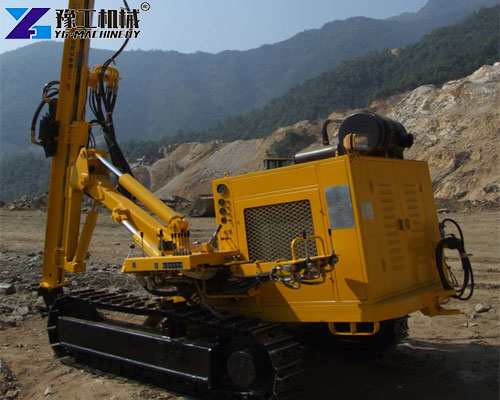

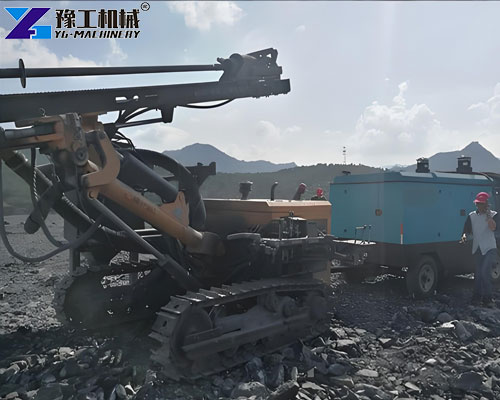

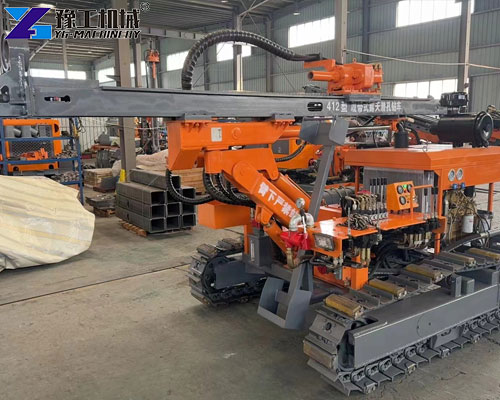

Crawler DTH Drilling Rig
- Good stability on uneven and complex terrain;
- It is capable of large-diameter and deep drilling, suitable for heavy-duty operations.
- The crawler down the hole drilling machine can move quickly between different construction sites, so it is relatively simple to operate.
- It can adapt to a variety of geological conditions, especially in environments with hard rocks or soft soils.
- Crawler DTH drills have low power consumption requirements and can maintain efficient operation during long-term operations, reducing operating costs.
Are you in urgent need of a flexible and efficient drilling rig? Contact us now to get a preferential quote for down-the-hole drilling rigs!
