Pipe Shrinking Machine

Pipe Shrinking Machine is widely used in pipe fittings docking, automobile tubing, duct, water pipes, air conditioning pipes, and other parts of the processing and forming, is the ideal pipe end forming processing equipment.

Read also: YG-250 Hydraulic Automatic CNC I/H Beam Cold Bending Machine



Request A Quote



YG 15-65mm Automatic Steel Pipe Shrinking Machine for Sale | Withhold/without trace



YG Automatic Mini Pipe Shrinking Machine is suitable for the withholding of various engineering high and low-pressure hoses, air pipes, water pipes, cable joints, and air conditioning pipes. It is widely used in vehicles, construction machinery, home appliances, welding and cutting equipment, and other industries.

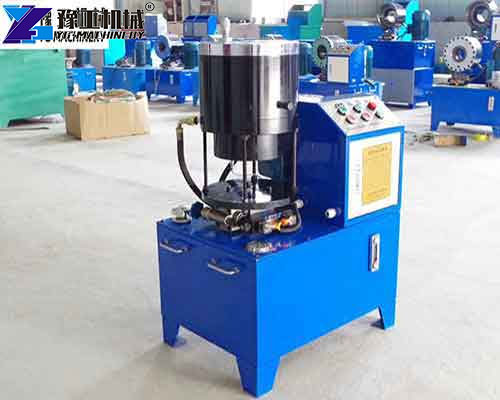

pipe shrinking machine
YG automatic pipe shrinking machine

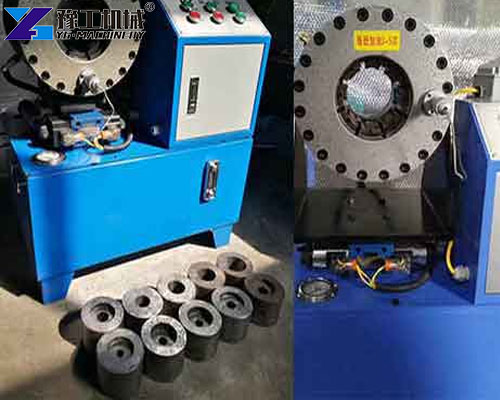

pipe shrinking machine
pipe shrinking machine for sale



The use of shrinking machines is becoming wider and wider, and the demand for shrinking machines is also increasing. Therefore, the scale of the pipe end forming machine is required at present.

YG Machinery provides several types of tube reducer machines: YG-48 Vertical, YG-48 Horizontal & Vertical, and YG-58.



Request A Quote

Main technical features

Model YG-48 YG-51 YG-58
Diameter of the crimped steel pipe 48-57mm 15-65mm 48-60mm
Shrink tubing length 5-10cm 5-10cm 5-10cm
System rated pressure 31.5Mpa 80Mpa 35Mpa
Power 220V/380V/4kw Optional 4kw, 380V 5.5kw
Weight 240kg 260kg 320kg
Dimensions 700*450*1050mm 750*500*910mm 800*500*1100mm

Functions of the Tube Reducer Machine



YG-48 vertical machine has two functions, shrinking 48 steel pipe inner sleeves and processing 57 outer sleeves. YG-48 Horizontal & Vertical can shrink 48 steel pipe inner sleeves and connect steel pipes. Dual-purpose, the two sets of molds have different functions.

Pipe Shrinking Machine | Vertical
Tube end forming machine | Vertical

Pipe Shrinking Machine | Horizontal & Vertical
Pipe Tube Reducing Machine | Horizontal & Vertical

YG Tube Reducer Machine is mainly used for steel pipe transmission in the construction industry(worksites, workshops, vegetable greenhouses, etc.). The Hydraulic Pipe End Forming Machine is especially for stainless steel pipe. High precision for shrinking pipes and no damage to the surface of the steel pipe. It is driven by double cylinders and the pipe shrinks quickly. The pipe can be expanded and reduced after changing the mold. Scaffolding Tube Reducer machine is mainly used for 48/50 steel pipe reduction on site, which can replace the top screw connection.

pipe shrinking machine details
tube reducer machine details

Advantages of Steel Pipe Shrinking Machine

It has the advantages of:

  • No pollution
  • Fast efficiency
  • Small size
  • Light weight
  • Fast mold opening
  • Easy operation
  • Good maintenance
  • etc.

Request A Quote



Working Principle

  • The Tube Reducer machine can adjust the working speed of the main oil cylinder by setting a pipe-type throttle valve on the main oil cylinder circuit;
  • A superimposed hydraulic control check valve is installed on the compression oil cylinder circuit to ensure that the mold does not become loose during clamping;
  • The circuit of the displacement cylinder, the limit cylinder, and the axial positioning cylinder is equipped with a superimposed two-way throttle valve, which can adjust the bidirectional movement speed of the above cylinder.



Precautions

  1. Do not put your hands into the lock when the automatic pipe shrinking machine is working, to ensure personal safety.
  2. Cut off the power during maintenance.



YG Pipe End Forming Machine Manufacturer – Yugong Machinery

YG Machinery is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments, civil constructions equipments, and so on. The YG Pipe Shrinking Machine is a hydraulic automatic pipe end processing machine that controls the end surface of the pipe. If you need to buy this machine, you can contact us at admin@ygcivilconstruction.com or leave your messages below!
