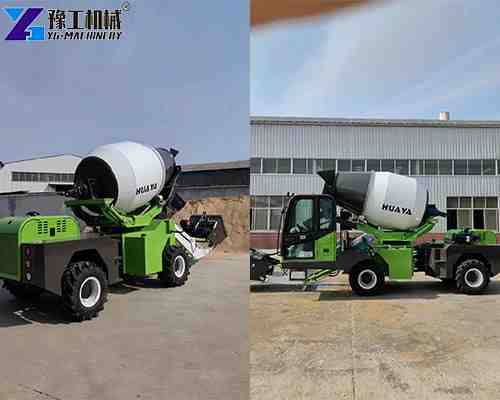

The self loading concrete mixer machine is a revolutionary construction equipment that integrates self-loading, mixing, and transporting functions into a single vehicle. It is the perfect choice for projects that demand speed, precision, and efficiency. Unlike traditional concrete mixers, this machine can complete the entire process in just 10–15 minutes, greatly saving labor and project time.
Self Loading Concrete Mixer Machine Parameters
| Specifications | 3-cubic-meter self-loading concrete mixer (3 m³) | 5-cubic-meter Self-Loading Concrete Mixer (5 m³) |
| Rated mixing capacity | 3 cubic meters | 5 cubic meters |
| Rated loading capacity | Approximately 4.5 cubic meters (varies slightly depending on material density) | Approximately 7.5 cubic meters (varies slightly depending on material density) |
| Discharging speed | Approximately 5-8 minutes per vehicle | Approximately 7-10 minutes per vehicle |
| Engine power | Approximately 95 kW (adjustable depending on model) | Approximately 120 kW (adjustable depending on model) |
| Machine weight | Approximately 7.5 tons (model may vary) | Approximately 11 tons (model may vary) |
| Maximum travel speed | Approximately 25 km/h | Approximately 22 km/h |
| Drive mode | Four-wheel drive | Four-wheel drive |
| Discharging method | Drum rotation for discharging, 360° rotatable discharge port | The drum rotates for unloading, and the discharge port rotates 360°. |
| Application range | Suitable for small projects, rural construction, municipal maintenance, remote areas, etc. | Suitable for medium-sized projects, infrastructure construction, roads, bridges, etc. |
| Main advantages | High flexibility, easy operation, and cost-effectiveness | High production efficiency, large mixing capacity per batch, suitable for large-scale production |
Unique Features of Self Loading Concrete Mixer Machine
- Self-Loading Function
The machine can automatically load raw materials such as cement, sand, and gravel into the mixing drum. There is no need for a separate loader or manual input, reducing labor costs and improving efficiency. - High-Efficiency Mixing
Equipped with a 270-degree rotatable mixing drum and rotating cabin, the machine ensures even concrete mixing and precise pouring. It can deliver uniform concrete quality directly to the construction site, minimizing waste and avoiding uneven pouring. - Rapid Operation
From loading to mixing and discharging, the self loading mixer machine completes the process in 10–15 minutes, which is much faster than conventional mixer trucks. This feature makes it ideal for small- to medium-sized projects where speed is critical. - Environmental Protection
The machine is designed to be eco-friendly, with reduced dust emissions and low fuel consumption. It helps construction companies meet environmental regulations while maintaining high productivity. - Versatility
The mixing drum and cabin rotation system allows concrete to be poured at different angles, enabling operation in narrow construction sites, hillside projects, and remote locations.

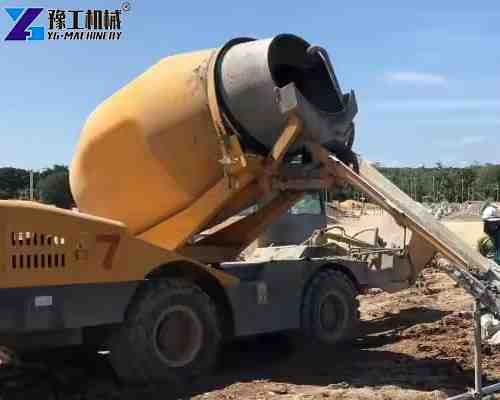

Common Applications of Self Loading Mixer Truck
The self loading concrete mixer machine is widely used in:
- Urban and rural road construction;
- Bridge and tunnel projects;
- Residential and commercial building projects;
- Infrastructure development in remote or mountainous areas;
- Small and medium-sized construction projects requiring frequent concrete delivery.
YG Machinery Real-World Case Studies
Laos Case Study
In Laos, a local contractor purchased a self loading concrete mixer machine from YG Machinery for road construction. With the 270-degree rotatable mixing drum, the machine enabled precise concrete pouring on uneven terrains. The project team reported significant labor savings and faster project completion.
Malaysia Case Study
In Malaysia, a contractor using YG’s self loading mixer truck completed a residential building project ahead of schedule. The machine’s self-loading and mixing system reduced the need for multiple operators and minimized material waste. The contractor praised its high efficiency and environmental performance.
Why Choose YG Self Loading Concrete Mixer Machines?
- High-Quality Components
YG’s machines are built with durable components and high-strength steel to ensure long-term reliability even in harsh environments. - Customizable Options
We offer a range of concrete mixer pump options and trailer concrete line pump configurations, tailored to the scale and requirements of your project. - Global Support & After-Sales Service
YG Machinery provides worldwide shipping and professional technical support, including remote guidance for installation, operation, and maintenance. - Proven Track Record
Our self loading concrete mixer machines are used in over 20 countries, including Laos, Malaysia, Thailand, and Vietnam, with consistent positive feedback on efficiency, durability, and ease of use.
Self Loading Concrete Mixer Machine in YG Machinery
The self loading concrete mixer machine from YG Machinery is an efficient, time-saving, and environmentally friendly solution for modern construction projects. Its self-loading, rapid mixing, 270-degree drum rotation, and precise pouring capabilities address common construction challenges, reduce labor costs, and speed up project completion.
If you are looking for a reliable self loading mixer truck, a concrete mixer pump, or a trailer concrete line pump, YG Machinery is your trusted partner.
