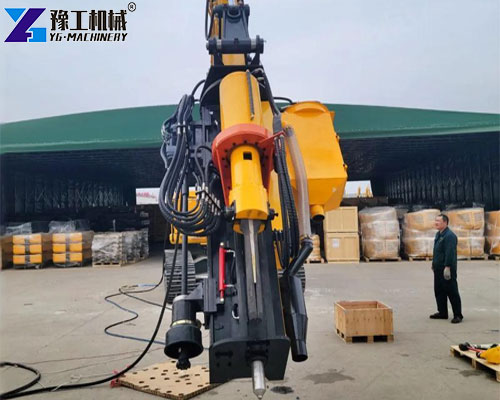

The YG Integrated Rock Drilling & Splitter Machine is a next-generation, all-in-one solution for breaking rocks efficiently and safely. Unlike traditional rock-breaking tools, this machine combines precision drilling and hydraulic splitting into a single unit, making it ideal for tunnel construction, quarrying, reinforced concrete demolition, and other challenging projects.
Designed for both excavator-mounted use and standalone operation, it provides fast, low-vibration, low-noise rock splitting even in urban or environmentally sensitive areas.
If you are looking for a solution that reduces labor, improves efficiency, and eliminates blasting risks, this machine is your ideal choice.
Specifications of Integrated Rock Drill and Splitter
| Drilling and splitting all-in-one machine | |
| Matching excavator model | 25T |
| Length | 3900mm |
| Width | 1300mm |
| Height | 1000mm |
| Total weight (including air compressor) | 3.2T |
| Hole diameter | 43-115mm |
| Hole depth | 1700mm |
| Average drilling speed | 1m/min |
| Impact energy | 300J |
| Impact pressure | 17.5mpa |
| Impact flow | 80-100L/min |
| Impact energy | 18kw |
| The maximum total flow of the system | 300L |
| Rated pressure (MPA) of the excavator system | 40Mpa |
| Splitting machine | 380 |
| Rated tension | 5000T |
| Splitting time | 3minutes |
| Crack width | 44929mm |
| Displacement of air compressor | 8m³/5bar |
| Dust removal system | can be increased |
| Operation method | remote control or driving |
Features of the YG Integrated Rock Drill and Splitter Machine
- Designed with hydraulic efficiency in mind, reducing fuel consumption and operating costs.
- Equipped with a heavy-duty drilling system that can penetrate even the hardest granite, basalt, and limestone formations.
- Once drilling is complete, the integrated hydraulic splitter inserts into the drilled hole and effortlessly cracks the rock apart.
- Perfectly sized for both large-scale open sites and tighter construction zones.

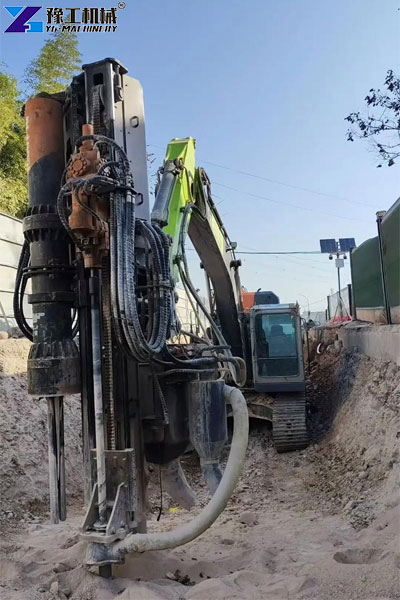

- Excavator-Mounted or Independent Model: Compatible with your existing excavator, or available as a complete standalone unit with its own power system.
- Low Noise, Low Vibration. It is perfect for urban or environmentally sensitive projects where traditional blasting isn’t an option.
Application of Integrated Rock Drilling & Splitter Machine
- Tunnel Excavation – Splits hard rock safely in underground spaces.
- Quarrying – Efficiently breaks granite, basalt, marble, and sandstone.
- Reinforced Concrete Demolition – Ideal for industrial and civil construction sites.
- Urban & Environmental Projects – Low noise and vibration make it suitable for sensitive areas.
- Roads, Bridges, and Dams – Precise splitting without damaging surrounding structures.
For simpler rock splitting projects, see our Hydraulic Rock Splitter Machine. It offers precise splitting for reinforced concrete and hard rock in confined spaces.
How Does it Works?
- Position the machine precisely over the rock you need to break.
- Drill a strategic pattern of deep, narrow holes.
- Activate the hydraulic splitter inside the holes.

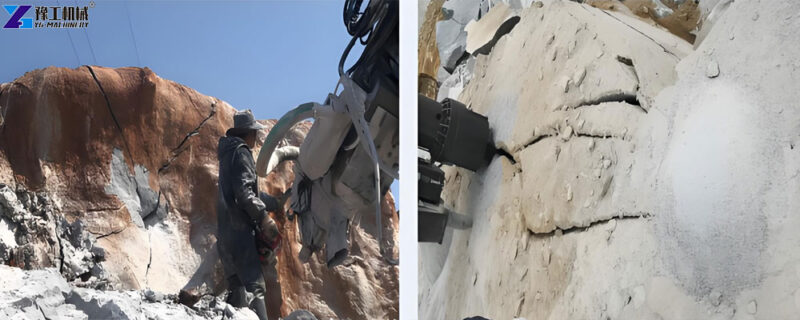

- Watch as the rock splits cleanly, with minimal debris and no flying fragments.
Case Study: Uganda Tunnel Project

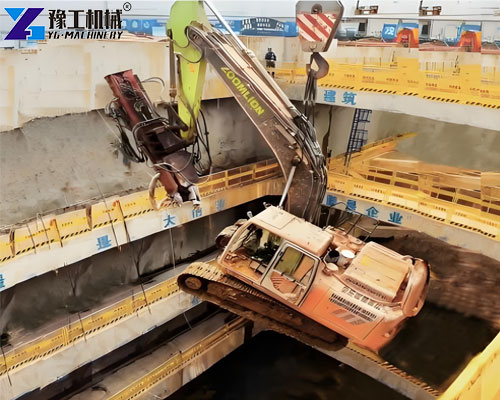

In March 2025, YG Machinery supplied an Integrated Rock Drilling & Splitter Machine for a tunnel construction project in Kampala, Uganda. The project required precise rock splitting in a confined underground space where traditional blasting was not an option due to safety and vibration concerns.
Our machine was deployed to drill deep, narrow holes and perform hydraulic splitting simultaneously. Within just 3 minutes per rock section, the team was able to split massive granite blocks safely and efficiently, without causing noise or dust pollution.
The project manager from Uganda commented:
“The YG Integrated Rock Drilling & Splitter Machine exceeded our expectations. It reduced labor costs, improved safety, and allowed us to maintain our schedule in a challenging tunnel environment. We highly recommend it for similar projects.”
This case demonstrates that YG’s all-in-one rock drilling and splitting solution is ideal for urban, environmentally sensitive, or confined construction sites worldwide.
Why Choose YG Machinery?
- Experienced Manufacturer: Exporting machinery to over 20 countries.
- Competitive Pricing: Factory-direct pricing with high reliability.
- Technical Support: Full guidance for installation, operation, and maintenance.
- Custom Solutions: Can adapt to your excavator model or provide standalone units.
If your project requires efficient and safe rock breaking, the YG Integrated Rock Drilling & Splitter Machine is your ultimate solution. For comprehensive construction solutions, YG Machinery also offers mini excavators for precise maneuvering in tight spaces, concrete pumps for efficient material handling, and other high-quality equipment to complete your project efficiently.
👉 Leave your project requirements today, and our sales team will provide a customized quote within 24 hours.
