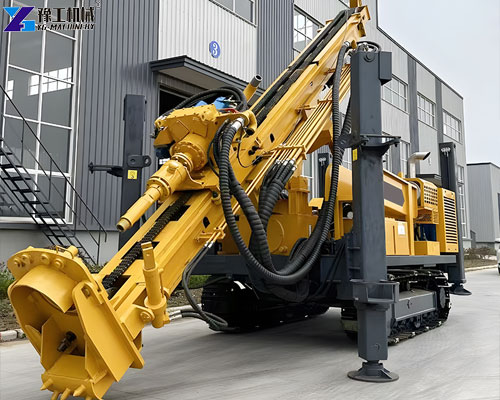

RC Drilling Rig for Gold Mining

The RC Drilling Rig for Gold Mining is a highly efficient and cost-effective solution for modern mineral exploration projects. It is designed to achieve fast penetration in hard rock formations while delivering clean, uncontaminated samples that accurately represent underground geological conditions. This enables mining companies to make faster, more reliable decisions in resource evaluation, drilling planning, and ore body targeting.

Compared with conventional drilling methods, the RC drilling system significantly improves both sampling quality and operational efficiency. It works by using a reverse circulation principle, where rock cuttings are quickly transported to the surface through a double-wall drill pipe driven by high-pressure airflow. This closed circulation process effectively prevents cross-contamination and ensures each sample is accurately preserved with precise depth and location information. The collected samples can then be sent directly for laboratory analysis, allowing geologists to obtain near real-time exploration data during drilling.

This technology is widely used in gold exploration because it helps reduce drilling costs, improve grade control, and enhance overall ore recovery efficiency. It performs particularly well in challenging geological conditions such as hard rock formations, fractured zones, and remote mining areas, where traditional drilling methods often face limitations in speed, stability, and sampling accuracy.

RC Drilling Rig Parameters

Technical Parameters	Unit	YG-400	YG-500	YG-600	YG-800	YG-1200
Max drilling depth	m	400	500	600	800	1200
Hole diameter	mm	105–305	105–400	105–450	105–550	105–800
Recommended working pressure	MPa	1.2–3.5	1.6–6	1.6–6	1.6–8	1.6–8
Recommended air consumption	m³/min	16–55	16–55	16–75	16–96	16–96
Drill pipe length	m	3	3	3	6	6
Recommended drill pipe diameter	mm	89/102	102/114	102/114	114/127	127/146
RC double-wall pipe diameter	mm	89/102	102/114	102/114	114/127	127/146
Feed force	T	6	7	7	11	13
Lifting force	T	22	25	29	47	57
Fast lifting speed	m/min	20	23	29	29	30
Fast feeding speed	m/min	32	33	33	42	44
Max rotary torque	Nm	8000/4000	10000/5000	12000/6000	18000/9000	24000/12000
Max rotary speed	r/min	75/150	75/150	75/150	70/140	86/172
Aux winch lifting force	T	1.5	1.5	2.5	2.5	2.5
Mast stroke	m	1.6	1.6	1.7	1.7	1.7
Travel speed	km/h	10–35	10–35	10–35	10–35	10–35
Gradeability	°	21	21	21	21	21
Machine weight	T	11	12	12.5	17	23
Overall dimensions (L×W×H)	m	7×1.85×2.86	7×2.1×2.9	7×2.1×2.9	10.5×2.25×3.3	11.5×2.25×3.4
Engine	/	Yuchai 92kW	Cummins 132kW	Cummins 132kW	Cummins 194kW	Cummins 264kW

How the RC Drilling System Works?

The core principle of a RC drilling rig is based on reverse circulation airflow and centrifugal separation technology.

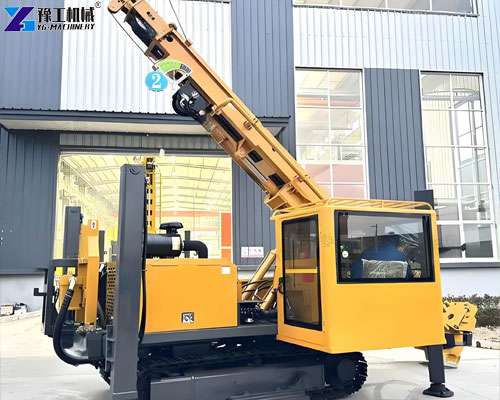

During operation, high-pressure air generated by an air compressor system is delivered through a gas distribution system into a double-wall drill pipe. The outer annulus delivers compressed air down to the drill bit, where it drives the down-the-hole hammer to break rock formations efficiently.

Once the rock is broken, cuttings are immediately carried upward through the inner tube of the double-wall drill pipe. This reverse flow ensures that samples are not mixed with surrounding materials.

At the surface, the mixture of air and rock cuttings enters a cyclone separator, where centrifugal force separates solid particles from airflow. The clean samples are then collected for geological analysis, while the air is released safely.

This system ensures:

• High sample purity
• Continuous sampling without interruption
• Fast and stable drilling performance

Key Technical Features of YG RC Drilling Rig

YG RC drilling rigs are engineered with a focus on durability, efficiency, and adaptability in complex mining environments.

1. Power System – Cummins Engine

The rig is powered by a Cummins diesel engine, known for its strong torque output, fuel efficiency, and stable performance in harsh working conditions. This ensures reliable operation even in remote mining sites without stable power supply.

2. Tracked Chassis Vehicle for Rough Terrain

The Tracked Chassis Vehicle allows the drilling rig to move freely across uneven, muddy, or rocky terrain. It provides excellent stability during drilling operations and eliminates the need for additional transportation equipment on site.

3. Advanced Air System Integration

The machine works with a high-capacity air compressor system, ensuring continuous and stable airflow required for reverse circulation drilling. The system includes:

• Gas distribution system for precise airflow control
• Reverse circulation joint for stable air transfer
• High-efficiency pipeline sealing design

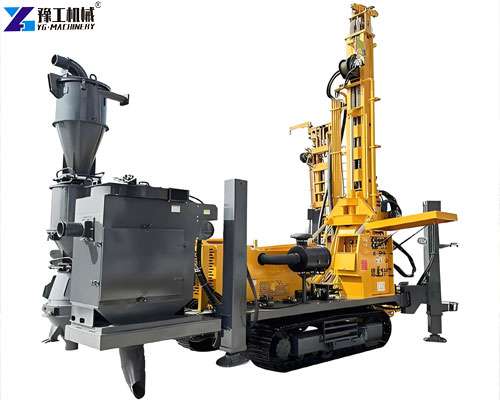

4. Cyclone Separation System

A high-performance cyclone separator is used to separate rock cuttings from airflow. This ensures that samples remain clean, uncontaminated, and suitable for precise mineral analysis.

Advantages of RC Drilling in Gold Mining Projects

Compared with traditional drilling methods, RC drilling provides several significant advantages:

1.Higher Sample Accuracy

Because samples are transported directly through the inner tube without contact with surrounding formations, contamination is greatly reduced.

2.Faster Drilling Speed

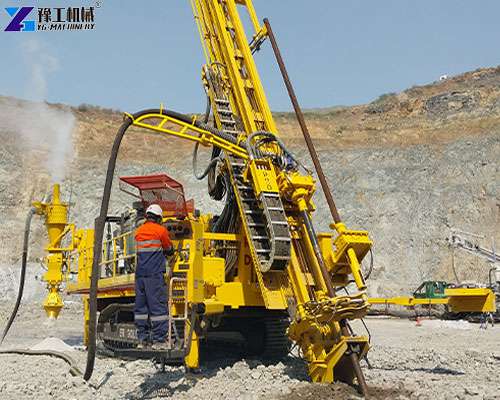

The combination of high-pressure air and down-the-hole hammer allows faster penetration in hard rock formations.

3.Stable Continuous Operation

The system is designed for uninterrupted drilling and sampling, improving overall exploration efficiency.

4.Better Adaptability

Whether in hard rock, fractured formations, or remote mining sites, RC drilling rigs maintain stable performance.

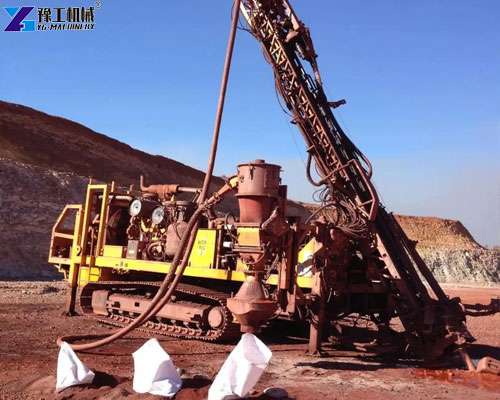

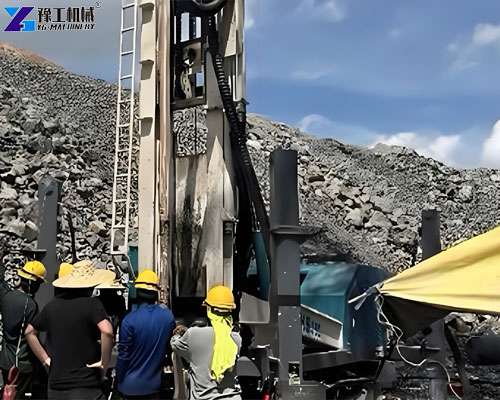

Application in Real Gold Mining Projects

YG RC drilling rigs are widely used in:

• Hard rock gold exploration areas
• Open-pit mine sampling operations
• Remote mining projects in Africa, Australia, and South America
• Early-stage geological survey and resource evaluation

For instance, our reverse circulation drilling rig project in Cameroon has achieved excellent results.

In these projects, the ability to quickly obtain accurate geological data directly impacts mining investment decisions and project profitability. For projects that require higher core sampling precision, it can also be integrated with a hydraulic core drilling rig for combined exploration solutions. Factory direct supply with customized configurations available.

Why Choose YG RC Drilling Rig?

As a professional manufacturer of drilling equipment, YG focuses on providing reliable and practical solutions for global mining customers.

Our advantages include:

• ✔ Strong engineering design based on real mining conditions
• ✔ Customizable configurations for different geological environments
• ✔ Stable performance with Cummins-powered systems
• ✔ Complete integration of drilling, air, and sampling systems
• ✔ Global export experience and technical support

Each machine is tested under strict quality control standards to ensure long-term durability and stable field performance.

Conclusion

The RC drilling rig is not just a drilling machine—it is a complete geological sampling solution designed for modern mineral exploration.

With its reverse circulation system, cyclone separation technology, and powerful Cummins engine, the YG RC drilling rig delivers a balance of speed, accuracy, and reliability that is essential for today’s gold mining industry.

Whether you are working on early-stage exploration or large-scale mining development, this equipment provides the efficiency and precision needed to make better geological decisions.
