A hydraulic drum cutter is an excavator attachment designed for controlled cutting, milling, and excavation of rock, concrete, asphalt, and other hard materials. Powered by the excavator’s hydraulic system, it uses one or two rotating drums fitted with carbide cutting picks to progressively remove material.
Compared with impact-based hydraulic breakers, a hydraulic drum cutter provides continuous rotary cutting, controlled material removal, and generally lower impact vibration. It is particularly useful for tunnel excavation, rock trenching, concrete milling, road construction, and projects where excavation accuracy is important.
YG Machinery offers hydraulic drum cutters for different excavator classes and applications. The suitable model depends on excavator weight, hydraulic flow and pressure, material hardness, required cutting width, and working conditions.tor into a precision cutting machine, making hard rock, asphalt, and concrete projects faster, cleaner, and safer.
What Is a Hydraulic Drum Cutter?

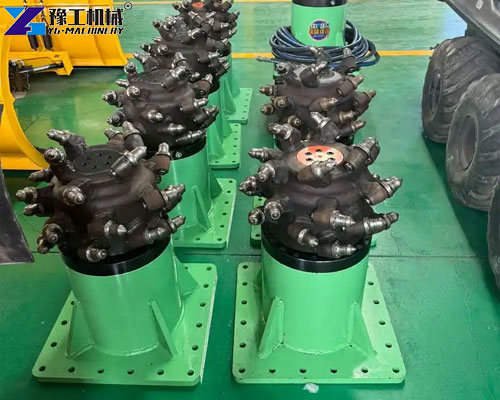

A hydraulic drum cutter consists mainly of a hydraulic motor, reduction gearbox, rotating cutting drum, and replaceable carbide cutting picks.
The excavator supplies hydraulic power to the attachment. The hydraulic motor converts this power into rotary torque, allowing the drum to rotate while the cutting picks progressively mill the working material.
This operating principle makes a hydraulic drum cutter different from a hydraulic breaker:
- Drum cutter: continuous rotary cutting
- Hydraulic breaker: repeated impact
- Drum cutter: controlled material removal and profiling
- Hydraulic breaker: rapid fracture of hard material
For applications requiring a controlled excavation profile or reduced impact on surrounding structures, a hydraulic drum cutter can be a suitable alternative to conventional impact tools.
How Does a Hydraulic Drum Cutter Work?
The working process can be summarized in five steps:
- Hydraulic power input – The excavator supplies hydraulic flow and pressure to the attachment.
- Motor drive – The hydraulic motor converts hydraulic power into rotary motion.
- Torque transmission – A reduction gearbox transfers torque to the cutting drum.
- Rotary cutting – Carbide picks on the drum progressively cut into the material.
- Controlled excavation – The excavator operator controls the boom, arm, and attachment movement to achieve the required cutting profile.
The final performance depends on the relationship between hydraulic flow, hydraulic pressure, motor torque, drum speed, cutting tool configuration, and material conditions.
Hydraulic Drive System of a Drum Cutter
The hydraulic drive is the core of a hydraulic drum cutter. It uses the excavator’s auxiliary hydraulic circuit to power the hydraulic motor, which drives the cutting drum through a reduction gearbox.
The hydraulic system determines how efficiently the attachment can convert excavator power into rotational speed and cutting torque.
Key hydraulic factors include:
- Hydraulic flow – affects motor speed and drum rotation.
- Hydraulic pressure – determines the available hydraulic power and torque.
- Motor configuration – affects the cutter’s operating characteristics.
- Gear reduction – converts motor speed into usable cutting torque.
- Hydraulic compatibility – ensures stable operation with the excavator.
Because excavators provide different hydraulic flow and pressure levels, the hydraulic motor and drum configuration should be matched to the carrier rather than selected by excavator tonnage alone.
For this reason, YG recommends confirming the excavator model, hydraulic flow, hydraulic pressure, and application before selecting a hydraulic drum cutter.
Key Advantages of a Hydraulic Drum Cutter

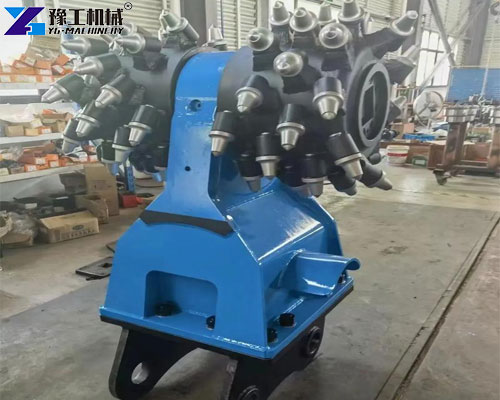

1. High Torque for Hard Materials
The hydraulic motor provides high rotational torque for cutting rock, concrete, asphalt, and other difficult materials. The actual cutting performance depends on the excavator’s hydraulic output, cutter configuration, material hardness, and operating conditions.
2. Controlled Rotary Cutting
Unlike impact tools, the drum continuously rotates while the excavator operator controls the cutting path. This allows more controlled material removal and is useful for trenching, tunnel profiling, concrete milling, and other precision excavation work.
3. Lower Impact Vibration
Because the cutting process is based on rotary milling rather than repeated impact, drum cutters generally generate less impact vibration than hydraulic breakers. This can be useful when working near existing structures, utilities, or other vibration-sensitive areas.
4. Precise Material Removal
The rotating cutting drum can gradually remove material along a defined path. This helps contractors achieve more controlled excavation profiles and reduce unnecessary over-excavation.
5. Replaceable Cutting Picks
Carbide cutting picks are designed to withstand abrasive working conditions and can be replaced when worn. Regular inspection and timely replacement help maintain cutting performance.llow quick maintenance, reducing downtime
Hydraulic drive ensures consistent performance under heavy load

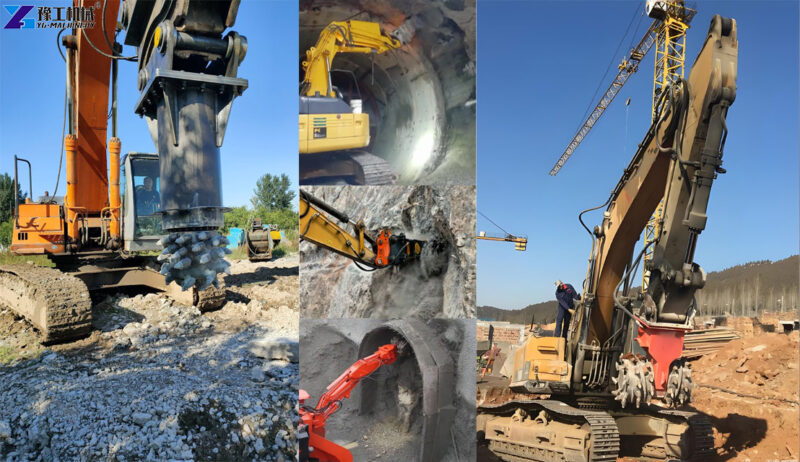

Hydraulic Drum Cutter Applications
Hydraulic drum cutters are suitable for projects where hard material needs to be removed progressively and with greater control.
1.Tunnel Excavation
Used for controlled rock cutting, tunnel enlargement, profiling, and excavation in confined underground environments.

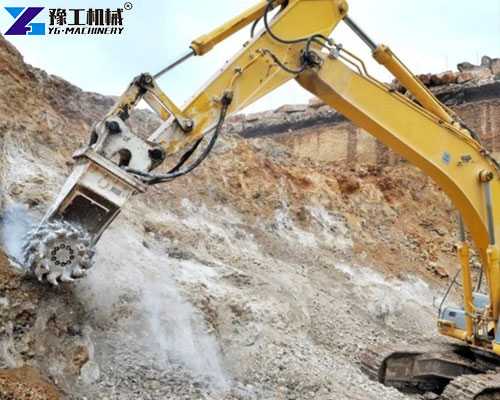

2.Rock Trenching
Suitable for cutting rock along trenches for utilities, foundations, drainage, and other construction projects.

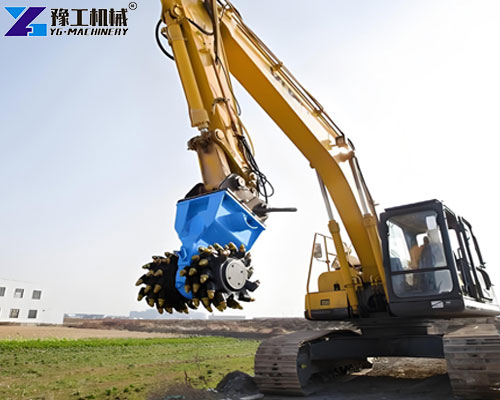

3.Concrete Milling and Demolition
Can be used to remove or profile concrete structures where controlled cutting is preferred over heavy impact.
4.Road and Infrastructure Construction
Suitable for milling hard surfaces, preparing foundations, and removing localized sections of concrete or asphalt.
5.Urban and Restricted-Space Excavation
The relatively controlled cutting process can be useful around existing structures, utilities, and other areas where excessive impact vibration is undesirable.
Note: Application suitability depends on material hardness, excavator size, hydraulic performance, required cutting depth, and site conditions.
Hydraulic Drum Cutter Technical Specifications
The following parameters are important when selecting a hydraulic drum cutter:
| Parameter | Typical Specification* |
|---|---|
| Excavator Weight | Model dependent |
| Drum Width | Model dependent |
| Cutting Depth | Model dependent |
| Rotation Speed | Up to 120 rpm |
| Hydraulic Flow | Model dependent |
| Operating Pressure | Model dependent |
| Torque | Model dependent |
| Attachment Weight | Model dependent |
| Cutting Picks | Replaceable carbide picks |
*Specifications vary by model and hydraulic motor configuration. Final hydraulic flow, pressure, torque, and excavator compatibility should be confirmed according to the selected model and the carrier’s hydraulic system.
Hydraulic System Compatibility
A hydraulic drum cutter must be matched to the excavator’s hydraulic system for stable performance. The most important factors are hydraulic flow, operating pressure, auxiliary circuit configuration, and attachment weight.
Before ordering, confirm:
- Excavator make and model
- Operating weight
- Auxiliary hydraulic flow
- Hydraulic pressure
- Quick coupler or mounting configuration
- Required hose and connection specifications
The hydraulic motor and drum configuration should be selected according to the excavator’s available hydraulic power and the intended application.
Send us your excavator model and hydraulic specifications for configuration advice.
Why Choose YG Machinery for Your Hydraulic Drum Cutter?
At YG Machinery, we specialize in high-performance hydraulic drum cutters engineered for efficiency, precision, and durability:
- Expertise – over 20 years of engineering and manufacturing experience
- Global reach – shipping to over 200 countries with tailored solutions
- After-sales support – professional guidance, installation, and maintenance
- Custom compatibility – suitable for mini excavators, crawler excavators, and heavy-duty mining excavators
Request Your Hydraulic Drum Cutter Today
Enhance your excavation efficiency, precision, and safety with a Hydraulic Drum Cutter from YG Machinery. Contact us now for a free quote and expert advice tailored to your excavator and project needs.
