Cleaning city sewers, drainage pipelines, and wastewater systems has always been a major challenge for municipal management and industrial operations. Traditional manual cleaning is not only inefficient but also exposes workers to toxic gases, confined spaces, and high safety risks. Is there a smarter and safer solution? 👉 The answer is a sewer cleaning robot — an advanced, automated system designed for efficient sludge removal in underground pipelines.
Sewer Cleaning Robot Parameters
| Parameter | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | 1500*500*650 | 1500*600*650 | 1600*700*650 | 1600*850*700 | 1650*960*750 | 1900*1200*750 |
| Dredging Width (mm) | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 4 | 4 | 4 | 4or6 |
| Pump Flow (m³/h) | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150m) |
| Hydraulic Station Dimensions (mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main Motor Power (kW) | 18 | 18 | 22 | 22 | 22 | 45KW (50KW) or Diesel 76KW (123KW) |
| Hydraulic System Pressure (Mpa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Not specified |
| Particle Size (mm) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30m/pack, 20kg pressure resistant, optional |
| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 |
Sewer Cleaning Robot for Sale
Our sewer cleaning robot for sale is engineered for municipal sewer systems and confined pipeline environments, offering high efficiency, safety, and intelligent operation.
It is ideal for:
- Urban sewer networks
- Underground drainage pipelines
- Industrial wastewater systems

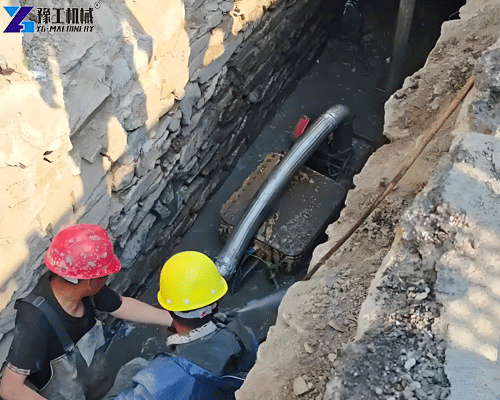

Sewer Cleaning Robot Removing Sludge in Confined Spaces
The sewer cleaning robot is specifically designed for narrow and hazardous environments, capable of operating in pipelines with limited access.
With its remote control system and powerful dredging capability, it can efficiently remove:
- Thick sludge
- Sand and sediment
- Solid debris
👉 All without requiring workers to enter the pipeline.
Key Features of Sewer Cleaning Robot
✔ Remote Control & Safe Operation
Operators can control the sewer cleaning robot remotely, eliminating the need to enter confined and hazardous environments.
✔ High-Efficiency Sludge Removal
Equipped with powerful pumps and agitation systems, it quickly removes sludge, silt, and debris from pipelines.
✔ Intelligent Operation System
This machine functions as an intelligent dredging robot, enabling precise control and improved cleaning efficiency.
✔ Flexible and Adaptable
- Suitable for curved pipelines and narrow channels
- Works in high-humidity and corrosive environments
- Real-time camera monitoring system
✔ Low Maintenance Cost
Modular design ensures easy maintenance and reduced operational costs.
Applications of Sewer Cleaning Robot
The municipal sewer cleaning robot is widely used in:
1. City Sewer Systems
Remove sludge and blockages to ensure smooth urban drainage.
2. Underground Drainage Pipelines
Maintain long-distance pipelines without manual intervention.
3. Industrial Wastewater Systems
Clean sludge and sediment in factory drainage pipelines.
4. Culverts and Confined Channels
Operate efficiently in narrow, enclosed environments where manual cleaning is difficult.
UAE Municipal Project Case
YG recently supplied sewer cleaning robots to a large industrial park in Abu Dhabi for pipeline and wastewater system cleaning.
Problem:
Manual cleaning was slow, inefficient, and hazardous.
Solution:
Deployment of YG sewer cleaning robot with remote control and real-time monitoring.
Results:
- Cleaning efficiency increased by 5×
- Labor costs reduced by 40%
- Safety risks significantly minimized
👉 This project proves the reliability of our equipment in complex and high-demand environments.
In addition, UAE clients have used dredging robots to clean silt and sand from port terminals with excellent results.
FAQ – Sewer Cleaning Robot
Q1: What pipe sizes can the robot handle?
A: Suitable for pipelines ranging from 200mm to 1500mm, with customization available.
Q2: Can it handle solid sludge and debris?
A: Yes, it is designed for heavy sludge, sediment, and solid particles.
Q3: Is it easy to operate?
A: Yes, the sewer cleaning robot uses a wireless remote control system and is easy to learn.
Q4: What about maintenance?
A: The modular structure ensures simple maintenance and long service life.
Why Choose YG Sewer Cleaning Robot?
- 10+ Years Manufacturing Experience in sewer cleaning and sludge removal equipment
- Global Customers across the Middle East, Europe, and the Americas
- Advanced Technology with intelligent control and durable materials
- Proven Performance in municipal sewer and pipeline projects
Get Your Sewer Cleaning Robot Today
Looking for a reliable sewer cleaning robot for sale?
👉 Contact YG Machinery now to get:
- Customized solutions
- Detailed technical specifications
- Competitive factory pricing
Upgrade your sewer cleaning efficiency with a safer and smarter solution today.
