In the application of rural water supply, farmland irrigation, mountainous area water extraction, portable well drilling rig has become the preferred equipment of many users because of its lightweight, flexible, easy operation and strong adaptability. This type of equipment is the first choice of many users. Compared with the traditional large drilling rigs, this kind of equipment is smaller in size and lower in investment, which is very suitable for small and medium-sized drilling projects in Africa and Southeast Asia and other water-scarce areas.
For more details about the drilling rig, please check here.
YG Portable Well Drilling Rig Parameters
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
Safety Precautions
It is equipped with reverse circulation water drilling process, which improves the stability of the hole wall and reduces the risk of hole collapse.
In terms of safety, operators need to check the hydraulic system before starting the rig, wear protective gloves and dust masks while drilling to avoid burns from hot parts, and check the connection status of the drill pipe regularly.
Multiple types to meet different needs
According to application scenarios, YG offers three major types of portable well drilling rigs:

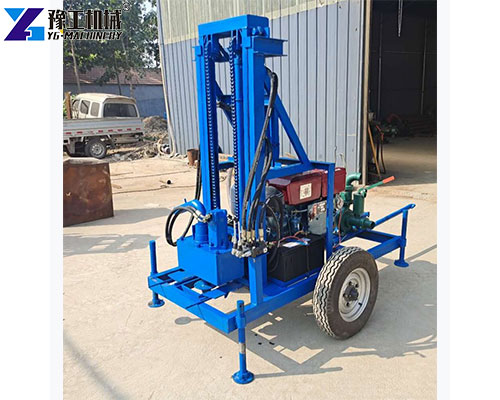

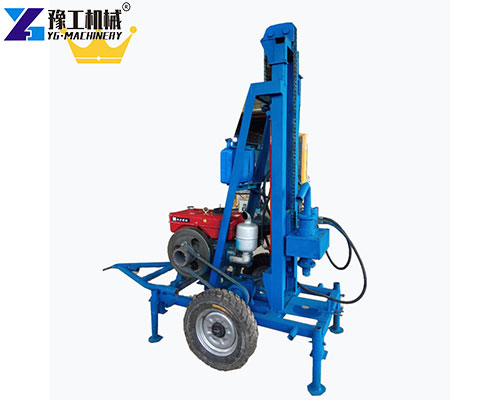

- Wheeled portable water well drilling rigs: suitable for plains and rural roads, maneuverable and flexible, suitable for farmers’ own use;

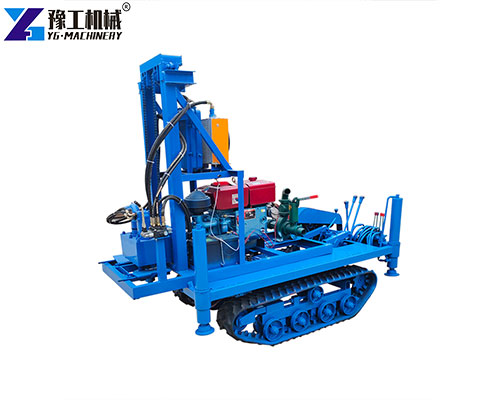

- Tracked portable drilling rigs: suitable for mountainous and soft geological areas, with stronger off-road capability;
- Towed portable drilling rigs: flexible for wide-range operation, suitable for mobile operation of engineering teams.
In addition, for different geological conditions, YG can provide different hardness drill bits, wall pipes, water pumps and other supporting products to ensure the construction effect.
Two Typical Overseas Cases

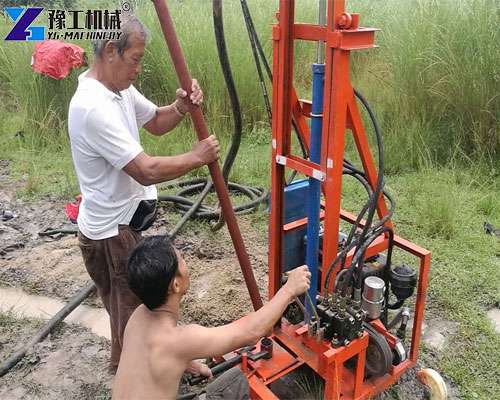

- In the northern part of Nigeria, a farmer purchased YG’s diesel-powered portable well drilling machine for a farmland irrigation project. The equipment is lightweight and can be operated by a single person, and two 80-meter-deep irrigation wells were drilled in only three days, solving the problem of water shortage in the dry season.
- In Siem Reap Province, Cambodia, a construction contractor purchased YG’s tracked portable water well drilling rig for sale for rural infrastructure construction. Facing the gravel layer and some pebble interbedded layer, the drilling rig showed good adaptability and fast drilling speed, which reduced the construction period and was well received by the local government.
Portable Well Drilling Machine in YG Machinery
YG’s portable well drilling rig is widely used in Africa, Southeast Asia and other markets with stable performance, reasonable price and flexible application range, which is a reliable water well drilling solution for users. We also provide tractor-mounted water well drilling rigs, truck-mounted water well drilling rigs, photovoltaic piling rigs, hydraulic core drilling rigs, and many other models and accessories, and support customization to meet different customer needs. Welcome to contact us for more product information and project solutions. WhatsApp/WeChat/Phone】+86 13837115193.
