For industrial and chemical wastewater treatment plants, using a desilting robot for wastewater treatment plant is no longer optional—it’s essential. Traditional cleaning methods are dangerous, inefficient, and costly, especially in confined and toxic environments. YG Machinery’s remote control desilting robot delivers safe, fully unmanned operation, high efficiency, and customizable features to handle complex sludge removal tasks.
Desilting Robot Parameters
| Parameter | YG500 | YG600 | YG700 | YG800 | YG900 | YG1200 |
| Robot Dimensions (mm) | 1500*500*650 | 1500*600*650 | 1600*700*650 | 1600*850*700 | 1650*960*750 | 1900*1200*750 |
| Dredging Width (mm) | 500 | 600 | 700 | 800 | 900 | Suitable for large culverts |
| Travel Speed (m/s) | 3–15 | 3–15 | 3–15 | 3–15 | 3–15 | 0–17 m/min |
| Pump Diameter (inch) | 3 | 3 | 4 | 4 | 4 | 4or6 |
| Pump Flow (m³/h) | 100 | 100 | 160 | 160 | 200 | 250 |
| Pump Head (m) | 0–30 | 0–30 | 0–25 | 0–25 | 0–25 | 0–30 (Horizontal: 100–150m) |
| Hydraulic Station Dimensions (mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main Motor Power (kW) | 18 | 18 | 22 | 22 | 22 | 45KW (50KW) or Diesel 76KW (123KW) |
| Hydraulic System Pressure (Mpa) | 0–16 | 0–16 | 0–16 | 0–16 | 0–16 | Not specified |
| Particle Size (mm) | 15 | 15 | 40 | 40 | 50 | 0–40 (customizable) |
| Winch Speed (r/min) | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| Pipe Length (m) | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30–50 Optional | 30m/pack, 20kg pressure resistant, optional |
| Control System | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote | Wireless Remote |
| Lighting System | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 | Underwater LED*2 |
Why Desilting Robots Are Urgent for Industrial Wastewater Plants?
Industrial wastewater treatment plants, chemical ponds, and high-concentration sludge tanks face significant cleaning challenges:
- Toxic or corrosive wastewater makes human entry extremely hazardous
- Sludge accumulation reduces water treatment efficiency and storage capacity
- Manual cleaning is slow, labor-intensive, and costly
- Dense sludge in confined tanks often requires draining, causing operational downtime
A desilting robot for wastewater treatment plant solves these problems by providing unmanned, precise, and continuous cleaning, making operations safer, faster, and more cost-effective.
Core Features of the Desilting Robot
- Remote Control Operation
Operators can control the robot from a safe distance, avoiding exposure to toxic or oxygen-deficient environments. Real-time monitoring ensures precision, efficiency, and safety.

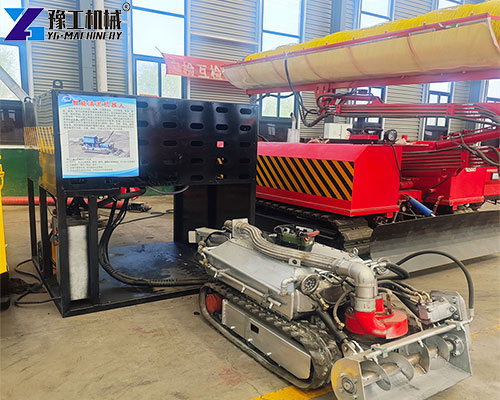

- Compact Design for Confined Spaces
The robot is small and maneuverable, capable of entering chemical sludge tanks, underground channels, and wastewater ponds with limited access. It can even work in tanks with minimal openings, solving problems traditional excavators cannot handle.
- Built-in Display and Camera System
Equipped with HD display screens and cameras, the robot allows operators to monitor cleaning progress in real time, ensuring accurate sludge removal and avoiding operational errors.

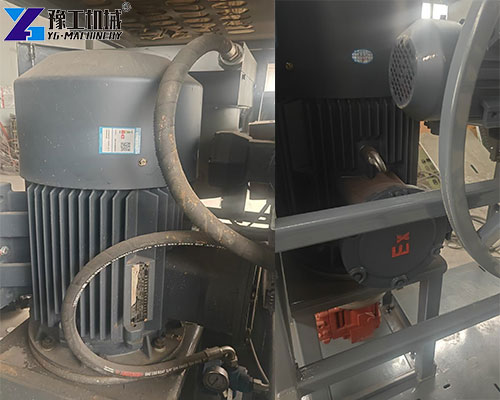

- Explosion-Proof Motor
Ideal for chemical wastewater environments, the explosion-proof motor ensures safe operation in potentially flammable or hazardous conditions.
- High-Efficiency Sludge Pump
With an integrated high-flow suction pump, the robot handles dense industrial sludge, reducing downtime and improving operational efficiency.
- Customizable Features
Optional upgrades include:
- Video monitoring for remote supervision
- Adjustable suction and crawler speeds
- Portable hydraulic systems for diverse environments
- Industrial and Chemical Applications
The desilting robot for wastewater treatment plant is suitable for:
- Industrial chemical wastewater tanks
- High-concentration sludge ponds in manufacturing plants

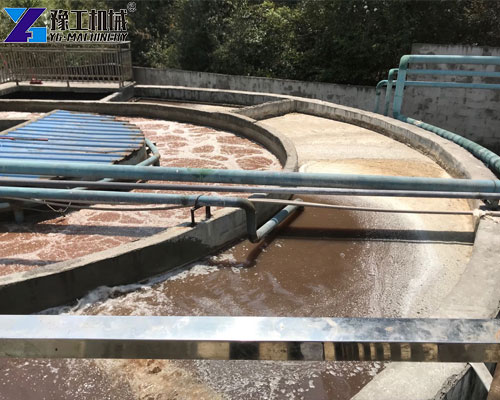

- Municipal and industrial sedimentation tanks
- Cooling towers and process water basins
It is especially effective where traditional cleaning methods fail due to toxic, corrosive, or confined conditions.
Australian Customer Case Study
In a chemical manufacturing plant in Australia, a high-concentration wastewater tank posed a major safety risk: manual cleaning required workers to enter toxic, oxygen-deficient, and corrosive environments, and traditional suction pumps could not reach the full sludge depth.
After deploying YG Machinery’s remote control desilting robot:
The robot entered the confined tank without draining the wastewater
Completed sludge removal 50% faster than manual methods
Reduced labor costs and eliminated safety risks
Allowed continuous monitoring through the display and camera system
The client reported that the desilting robot dramatically improved operational safety and efficiency, making it a critical part of their maintenance program.
Why Choose YG Desilting Robot?
- Factory Direct Supply – competitive prices, no middleman
- Proven Technology – mature R&D for industrial and chemical sludge cleaning
- Global Service – exported to multiple countries with professional support
- Customizable Solutions – adaptable to different wastewater tank sizes and types
- After-Sales Support – remote commissioning, operation training, maintenance guidance
