Foldable Container Houses (FCH) is a kind of movable building form based on light steel skeleton and modular design. It can be compressed and folded during transportation, and can be used immediately after lifting and unfolding. It is widely used in construction sites, emergency accommodation, tourist camps and commercial exhibition areas.
This article will focus on the types of folding container house, structural characteristics, application scenarios and YG product advantages, to help you gain a deeper understanding of this cost-effective temporary construction products.
Multiple Structural Forms to Meet Diverse Needs
Foldable Container Houses can be structurally optimized according to the use scenarios and space requirements. Common forms include:
- Modular structure: prefabricated in the factory, single unit is independent, high transportation and installation efficiency;
- Double-wing design: core space in the center, with additional bedrooms or functional areas formed when both sides are expanded, suitable for dormitory and residential scenarios;
- Triple-wing room type: adding back expansion area on the basis of double-wing for kitchen or bathroom configuration;
- Telescopic folding room: horizontal expansion of space is realized through tracks, which is convenient for arranging office or reception functions;
- Stackable structure: upper and lower combinations, forming a two- or three-story space layout, suitable for projects with limited space.
- Integrated folding room: the kitchen, bathroom, water and electricity systems are pre-buried into the module, which is ready to use on arrival without secondary installation, suitable for government procurement and field resident projects.

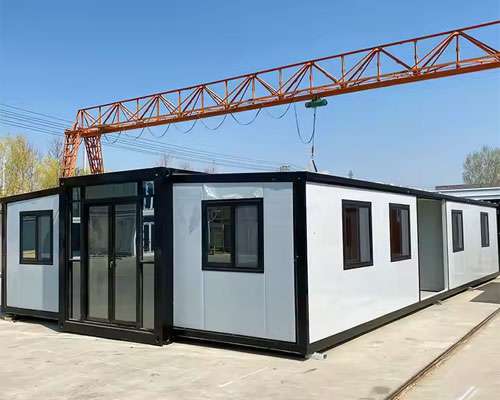

- Expandable Foldable Houses: the unfolding process is completed in 5-10 minutes without large-scale equipment; large space: the area of a single module after unfolding can be up to 26m2~40m2; functional partitions such as kitchens, bathrooms, partition walls, etc. can be added according to demand.
Flexible Assembly, Convenient Transportation
Foldable Container Houses support lifting and transportation, and can also be assembled on-site by splicing and combining, so as to adapt to complex terrain or batch deployment requirements. For example, campsites in mountainous areas and narrow sites in cities can be laid out by combining the units flexibly, avoiding the problem of large lifting equipment entering the site.
Foldable Container Houses Parameters
| 20FT Basic Characteristics | External dimension (mm) | W6320*L5900*H2480(Side 2270) |
| Internal dimension (mm) | W6160*L5560*H2240(Side 2150) | |
| Folded state (mm) | W2200*L5900*H2480 | |
| Total mass (kg) | 2500 | |
| 30FT Basic Characteristics | External dimension (mm) | W6360*L9000*H2480(Side 2180) |
| Internal dimension (mm) | W6200*L8660*H2240(Side 2060) | |
| Folded state (mm) | W2200*L9000*H2480 | |
| Total mass (kg) | 3750 | |
| 40FT Basic Characteristics | External dimension (mm) | W6240*L11800*H2480(Side2180) |
| Internal dimension (mm) | W6080*L11540*H2200(Side2060) | |
| Folded state (mm) | W2200*L11800*H2480 | |
| Total mass (kg) | 4400 | |
| Smaller Fold Size | External dimension (mm) | W4820*L5900*H2480(Side2270) |
| Internal dimension (mm) | W4660*L5560*H2240(Side2150) | |
| Folded state (mm) | W700*L5900*H2480 | |
| Total mass (kg) | 1850 |

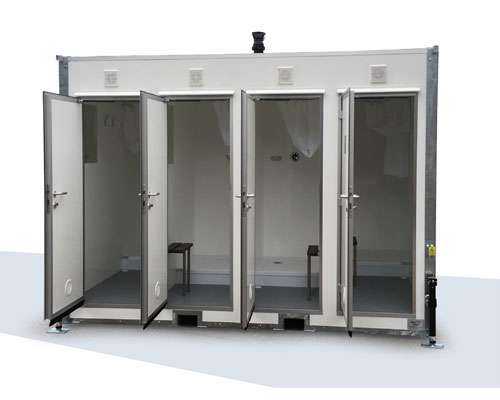

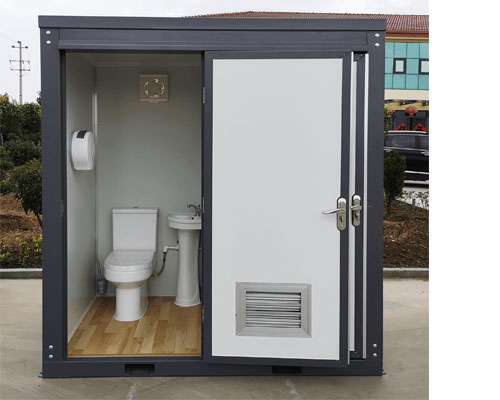

Portable Restroom Bathroom Mobile Toilet /Shower
YG Machinery also specializes in the production of outdoor portable toilets and prefabricated showers and other ancillary products, which are widely used in construction sites, tourist camps, emergency relocation and other scenarios. All products support customized size and internal structure, and can be flexibly configured with sinks, exhaust systems, water and electricity connections and other functional modules according to different needs, creating efficient and comfortable mobile sanitation solutions.
Customer FAQ
Q1: Can Foldable Container Houses be used for a long time?
Yes, it can. Under normal use and maintenance, the product life span can reach about 30 years, which is suitable for long-term projects or reusable scenarios.
Q2: Is it easy to be damaged during transportation?
Not easily. Compact structure in folded state, welded parts and spindles have been tested for durability, strong shock and pressure resistance.
Q3: Can I install air conditioning or solar energy system?
Yes, YG can reserve air-conditioning ports or integrate solar modules according to customer needs to realize green energy supply.
Q4: Do I need specialized personnel for installation?
No, it does not. Users only need to go through a short training program and can quickly complete the installation with guidance.
Q5: How is the sealing and insulation performance of the house?
It is designed with three-layer sealing tape + high-density heat insulation layer to ensure good rainproof, dustproof and comfort in winter and summer.
Choose YG for Reliable Folding House Solutions
As a leading folding house manufacturer in China, YG Machinery has a mature R&D team and professional engineering support. Our products have been exported to more than 50 countries in North America, Middle East, Africa and Southeast Asia, and are widely used in construction units, NGO organizations and government procurement projects.
Welcome to contact us for technical information, customized solutions and the latest price! YG is willing to be your reliable partner in the global construction facilities.
