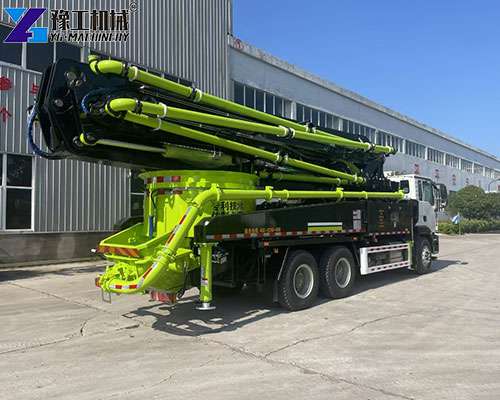

A concrete boom pump, also known as a boom truck, is a high-efficiency machine used to transport and place concrete in construction projects where access is limited or where high-rise pouring is required.
It combines a concrete pumping system and a hydraulic telescopic boom to deliver concrete accurately over long distances and heights. Compared with trailer-mounted line pumps, boom pumps are more suitable for large-scale projects and high-rise buildings.
Concrete Boom Pump Truck Parameters
| Vehicle model | / | 5230THB | |
| whole vehicle | Dimensions: length x width x height | mm | 9500X2500X3680 |
| Vehicle weight | Kg | 23000 | |
| Pumping | Concrete theoretical delivery | m³/h | 60 |
| Concrete theoretical output pressure | MPa | 10 | |
| Hopper volume | m³ | 0.6 | |
| Feeding height | mm | 1450 | |
| Maximum aggregate size | mm | 40 | |
| Concrete slump | mm | 120-230 | |
| Approach angle/departure angle | (°) | 19°/11° | |
| Hydraulic | Hydraulic system pressure | MPa | 32 |
| Hydraulic circuit (open/closed type) | / | open | |
| Hydraulic oil tank capacity | L | 600 | |
| Lifting arm | Maximum vertical fabric height | m | 30 |
| Maximum horizontal fabric radius | m | 28 | |
| Maximum fabric depth (including 3m hose) | m | 22 | |
| Lifting arm folding method | / | RZ | |
| Minimum boom extension height | mm | 6200 | |
| Length of each section of the boom | mm | 7550/6300/6300/3455/2856 | |
| Rotating angle of each section of the boom | (°) | 90/180/180/245/90 | |
| Angle of rotation | (°) | ±360º | |
| Tail hose length | m | 3 | |
| Support leg | Longitudinal span of outrigger | mm | 6200 |
| Transverse span of front outrigger | mm | 5300 | |
| Rear leg transverse span | mm | 5300 | |
Features of a Concrete Boom Pump
- High Reach: Hydraulic boom allows concrete placement at high-rise buildings or hard-to-access areas.
- Large Output: Can deliver high volumes of concrete quickly, improving efficiency.
- Versatile Power Options: Available in diesel or electric models to meet urban and remote construction needs.
- Durable Design: Equipped with wear-resistant S-valves, pistons, and high-quality hydraulic components.
- User-Friendly Operation: Remote control or manual operation, adjustable pumping speed.
- Safety: Advanced hydraulic system with overpressure protection and automatic lubrication.
Applications of Concrete Boom Pumps

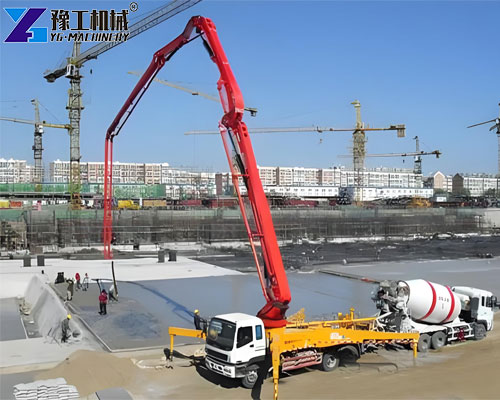

- High-rise residential buildings and apartments
- Commercial buildings and shopping malls
- Bridges, tunnels, and infrastructure projects
- Floor slabs and foundation pouring
- Large concrete projects with limited access
How to Choose the Right Concrete Boom Pump?
- Project Scale:

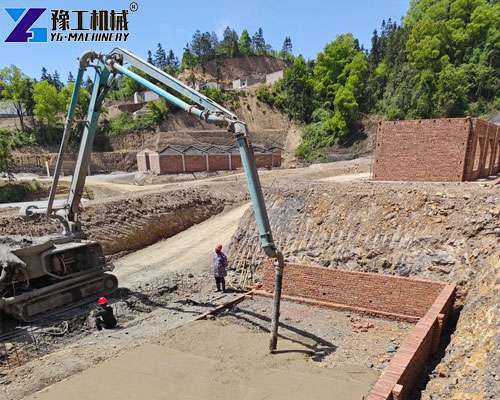

- Small residential: 14m – 16m boom pumps or small concrete pump truck
- Medium commercial: 16m – 20m boom pump trucks
- Large-scale high-rise: 20m – 30m or larger boom pumps
- Power Source:

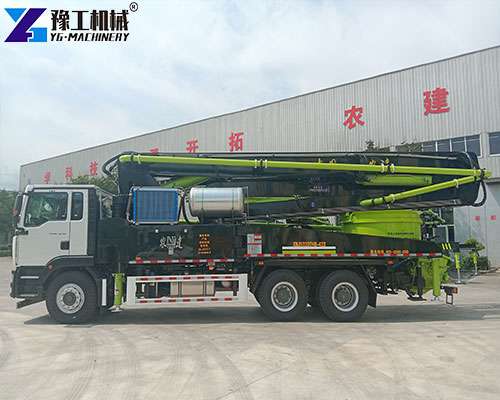

- Diesel concrete boom pumps: Ideal for remote sites without electricity.
- Electric concrete boom pumps: Lower operating cost and environmentally friendly for urban construction.
- Concrete Type:
- Fine stone concrete or mortar: Standard boom pump
- Larger aggregate concrete: Use high-performance S-valve boom pumps
- Budget:
- Consider initial investment, fuel consumption, maintenance, and expected output.
Advantages of Choosing YG Concrete Boom Pump
- Competitive factory-direct price and professional quotation
- Customizable boom length and pump specifications
- High-quality hydraulic and electronic components
- Fast global delivery and CE-compliant equipment
- Technical support, installation guidance, and lifetime spare parts
Whether you need a small concrete pump truck, crawler concrete mixer with boom pump, or a high-rise concrete boom pump, YG Machinery provides full solutions for your construction project.
FAQ about Concrete Mixer with boom Pump
1. How much is a concrete boom pump?
- Prices vary depending on output, boom length, and power type. Contact us to know more details now!【WhatsApp/WeChat/Phone】+86 13837115193.
2. What is the difference between a boom pump and a line pump?
- Boom pumps: High-output, hydraulic boom, suitable for high-rise and large-scale projects.
- Line pumps: Flexible, portable, suitable for smaller residential or commercial projects.
3. Can a boom pump be combined with a concrete mixer?

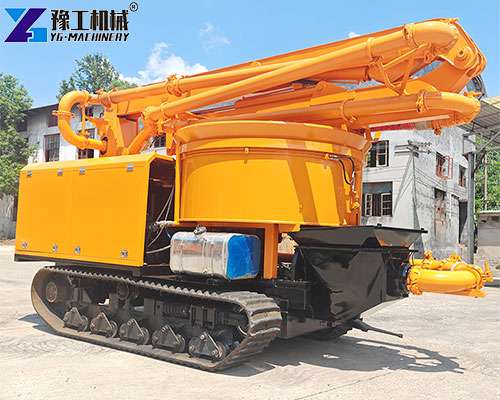

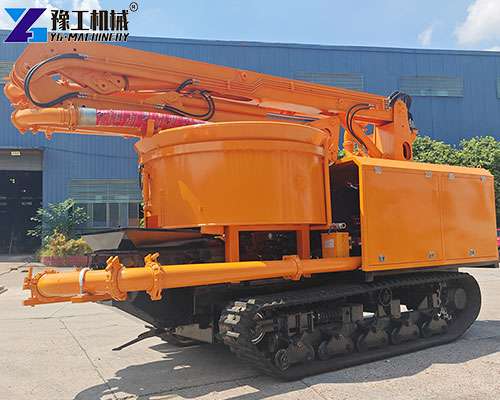

- Yes, a crawler concrete mixer with boom pump or self-loading concrete mixer with boom pump can mix and pump simultaneously for efficiency.
Conclusion
A concrete boom pump is an essential machine for modern construction, providing high efficiency, safety, and precise concrete placement. For boom pump trucks for sale or small concrete pump truck needs, YG Machinery is your reliable supplier with decades of experience in high-quality concrete pumping equipment.
Contact YG Machinery today for professional advice and the latest concrete boom pump price. WhatsApp/WeChat: +86 13837115193
