An articulating boom lift for sale is designed for elevated work where workers need to reach over obstacles, position themselves around structures, or access areas that are difficult to approach with a straight boom. Its jointed boom allows the platform to move up and over obstacles, making it suitable for maintenance, installation, construction, and industrial work.
YG Machinery offers an articulating boom lift with a maximum working height of 12 m, a maximum platform height of 10 m, and a maximum horizontal reach of 5.8 m. With a compact stowed width of 1.5 m and a minimum turning radius of 2.16 m, it is worth considering for projects that need both elevated access and flexible positioning.
Whether you are purchasing equipment for your own worksite or expanding a rental fleet, the right machine should match your required reach, platform capacity, ground conditions, and access space.
Request a quote from YG Machinery to discuss your working height, reach, and application requirements.
Why Choose an Articulating Boom Lift?
An articulating boom lift allows workers to reach elevated areas around obstacles such as pipes, machinery, and structural beams. Its jointed boom provides flexible positioning for construction, industrial maintenance, and installation work.
1. Reach Over and Around Obstacles: The jointed boom helps position the platform above or around obstacles that may prevent direct access. It is useful for working near building facades, industrial equipment, and overhead structures.
2. Flexible Positioning at Height: In addition to working height, horizontal reach is important when selecting an articulating boom lift. YG’s model offers a maximum working height of 12 m and a maximum horizontal reach of 5.8 m. Check the manufacturer’s working-envelope chart to confirm that the machine can reach your target area.

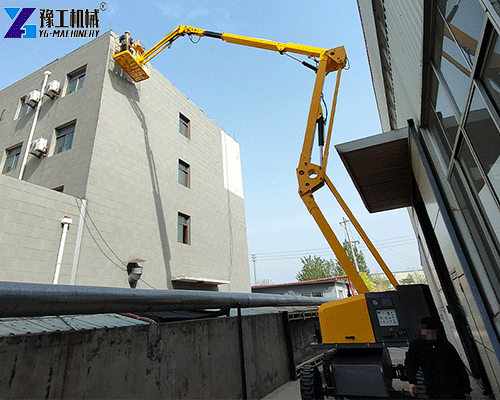

3. Compact Dimensions for Restricted Access
With a stowed width of 1.5 m, a stowed height of 1.99 m, and a minimum turning radius of 2.16 m, this model is worth considering for sites with limited maneuvering space. Check doorway clearance, floor loading, and other access requirements before purchase.
4. Suitable for Multiple Applications: An articulating boom lift can support a variety of elevated work tasks, including:
- Industrial maintenance: Accessing pipes, machinery, and overhead equipment.

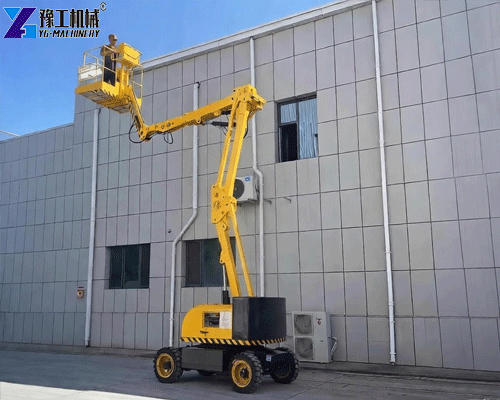

- Building maintenance: Reaching exterior walls, lighting, and building components.
- Electrical installation: Positioning workers near overhead fixtures and cable routes.
- Steel structure construction: Accessing elevated connections and structural components.
- Warehouse maintenance: Performing overhead repairs and installation where site conditions permit.
- Equipment rental: Providing flexible elevated access for different customer projects.
The right model depends on working height, horizontal reach, platform capacity, ground conditions, and site access requirements.

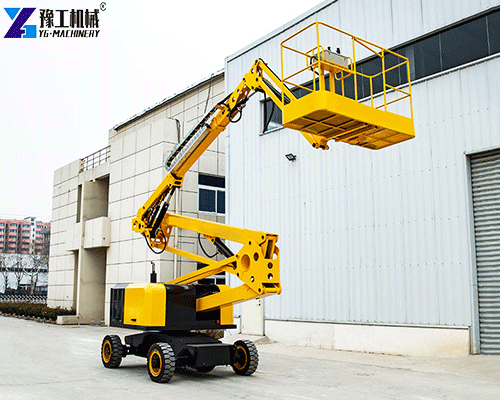

YG Articulating Boom Lift for Sale Specifications
The following table summarizes the specifications supplied for this configuration.
| Parameter | Specification |
|---|---|
| Maximum Working Height | 12 m |
| Maximum Platform Height | 10 m |
| Maximum Horizontal Reach | 5.8 m |
| Maximum Span Height | 4.78 m |
| Maximum Platform Capacity | 200 kg |
| Gradeability | 25% |
| Minimum Turning Radius | 2.16 m |
| Stowed Length | 4.35 m |
| Stowed Width | 1.5 m |
| Stowed Height | 1.99 m |
| Platform Dimensions (L × W × H) | 1.1 × 0.65 × 1.13 m |
| Turntable Rotation | 355° |
| Platform Rotation | 120° |
| Ground Clearance | 0.15 m |
| Drive Wheel Size | 0.59 × 0.19 m / 0.66 × 0.17 m |
| Gross Weight | 4,700 kg |
| Control Voltage | 24 V |
| Battery | Listed as 48/320 V/Ah — confirm exact specification |
| Charger | Listed as 48/40 V/A — confirm exact specification |
| Hydraulic Tank Capacity | 40 L |
| Wheelbase | 1.65 m |
How to Choose the Right Articulating Boom Lift?
Choosing the right articulating boom lift depends on working height, horizontal reach, platform capacity, ground conditions, and site access.
- Working Height vs. Platform Height: Platform height measures the height of the platform above the ground, while working height typically includes the operator’s reach. YG’s model offers a 10 m platform height and a 12 m maximum working height.
- Horizontal Reach and Obstacle Clearance: Consider the distance between the machine and the target work area. Check the manufacturer’s working-envelope chart to ensure the articulating boom can reach over or around obstacles safely.
- Platform Capacity: The maximum platform capacity is 200 kg, including workers, tools, and materials. Always follow the manufacturer’s load limits and permitted occupancy.
- Ground Conditions and Gradeability: The listed gradeability is 25%, but this does not necessarily indicate the permitted slope during elevated operation. Confirm the manufacturer’s requirements for ground conditions, slope limits, and safe operation.
- Stowed Dimensions and Transportation: The machine measures 4.35 m long, 1.5 m wide, and 1.99 m high when stowed, with a gross weight of 4,700 kg. Check access clearance, transport capacity, loading requirements, and storage space before purchasing.
Benin Customer Case: Choosing an Articulating Boom Lift for Practical Site Access
For many buyers, selecting a boom lift starts with a familiar problem: the work area is elevated, but a ladder or a basic vertical platform cannot provide the required positioning. Obstacles may restrict direct access, and workers may need to move around structural components to reach the exact point where maintenance or installation is required.
A customer from Benin purchased an articulating boom lift from YG Machinery. This case reflects a common consideration among buyers evaluating similar equipment: finding a practical balance between working height, horizontal reach, machine dimensions, and platform capacity.
For projects with restricted access, the key question is not simply whether the platform can reach 12 m. Buyers also need to know whether the boom can approach the work area from the available position, whether the platform can carry the necessary workers and tools within its rated capacity, and whether the machine can maneuver safely around the site.
YG’s listed configuration offers a maximum working height of 12 m, a maximum horizontal reach of 5.8 m, and a maximum platform capacity of 200 kg. These specifications provide a starting point for evaluating similar requirements.
If your project involves overhead installation, industrial maintenance, or elevated access around obstacles, compare the machine’s working envelope and stowed dimensions with your site measurements before ordering.
Articulating Boom Lift vs. Other Types of Lifting Equipment
Choosing the correct equipment type can help avoid paying for features that a project does not need.
| Equipment Type | Best Suited For | Main Consideration |
|---|---|---|
| Articulating Boom Lift | Reaching elevated areas around obstacles | Flexible positioning and horizontal reach |
| Telescopic Boom Lift | Reaching more directly outward or upward | Long, relatively straight reach |
| Scissor Lift | Primarily vertical access on suitable surfaces | Platform space and vertical lifting |

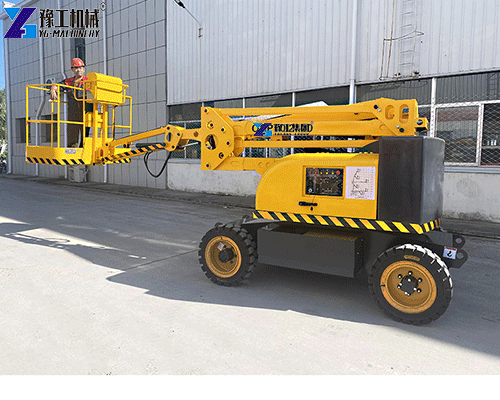

| Small Articulating Boom Lift | Projects with tighter access requirements | Stowed dimensions and working envelope |
| Trailer-Mounted Boom Lift | Applications requiring towable transport between sites | Towing compatibility, setup, and stabilizing requirements |
These are general equipment distinctions. Actual capability depends on the specific model and manufacturer.
YG’s listed machine weighs 4,700 kg and has a stowed width of 1.5 m. Do not assume that it is a towable or trailer-mounted unit unless its design and specifications explicitly confirm that configuration.
When comparing different types of aerial work platforms, consider the required working height, horizontal reach, platform capacity, and site conditions.
FAQ About Articulating Boom Lift for Sale
1. How do I know whether an articulating boom lift can reach over a building feature?
Check the manufacturer’s working-envelope diagram rather than relying only on maximum working height. Measure the target height, horizontal distance, and the position of any obstruction. The diagram should show whether the boom can reach the target within the permitted operating range.
2. Can an articulating boom lift be used on a slope?
Only within the limits specified by the manufacturer. Gradeability, permitted driving slope, and allowable slope while elevated are not necessarily the same. Check the operating manual and use the machine only on surfaces and slopes approved for the intended mode of operation.
3. What information should I send when requesting a quotation?
Provide the required working height, horizontal reach, expected platform load, access dimensions, ground conditions, intended application, and destination country. Photos or a simple site layout can also help the supplier understand obstacles and access restrictions.
4. How should I compare two boom lifts with the same working height?
Compare horizontal reach, working-envelope diagrams, platform capacity, stowed dimensions, turning radius, gradeability, gross weight, power system, and maintenance requirements. Two machines with the same maximum working height may perform very differently around obstacles.
5. What maintenance should be checked before each shift?
Follow the manufacturer’s pre-operation checklist. Depending on the machine, this may include inspecting tires, visible hydraulic hoses, structural components, platform gates, controls, emergency-stop functions, alarms, and safety systems. Any defect affecting safe operation should be addressed before use.
6. What should I check when buying an articulating boom lift for a rental fleet?
Consider the range of working heights and reaches required by your customers, transport constraints, service access, parts availability, operator training, inspection requirements, and expected utilization. A machine that suits several common job types may be more useful than one selected solely for its maximum height.
7. Is an electric articulating boom lift suitable for indoor work?
It may be suitable when the model’s dimensions, power system, floor loading, and operating requirements match the facility. For indoor use, confirm ventilation requirements, turning clearance, floor capacity, and whether the machine is approved for the intended environment. Do not assume that every articulating boom lift is electric or suitable for indoor operation.
Articulating Boom Lift for Sale in YG Machinery
If you need an articulating boom lift for maintenance, installation, construction, or equipment rental, YG Machinery can help you evaluate the available configuration against your site requirements.
To receive a more suitable recommendation, share your required working height, horizontal reach, platform load, access dimensions, ground conditions, and application.
Contact YG Machinery today to request a quotation for an articulating boom lift.
