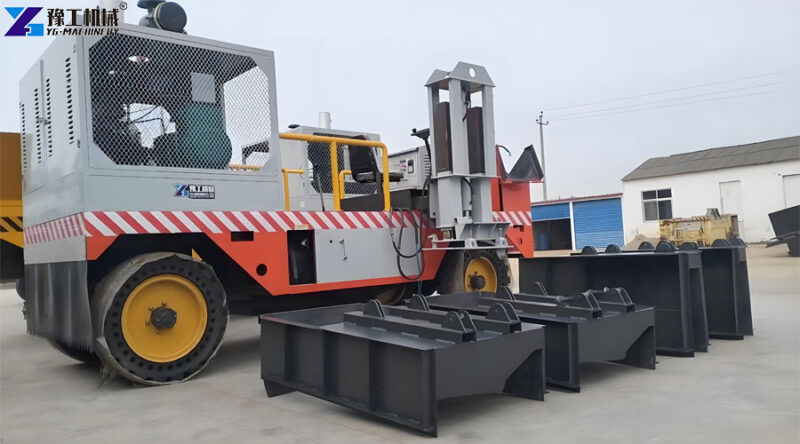

Slipform curb machine, also known as a concrete curb machine or curb and gutter machine, is a specialized road construction machine designed for continuous on-site concrete curb forming. It significantly improves construction efficiency while producing strong, smooth, and precise curb structures. Widely used in highways, municipal roads, drainage systems, parking lots, airports, industrial parks, and landscaping projects, it has become the preferred choice for modern infrastructure construction.
YG provides customized slipform paving solutions for different curb profiles, gutter systems, drainage channels, and barrier designs. Machines can be configured for various curb widths, heights, and molds according to specific project requirements.
Slipform Curb Machine Parameters
| Model | KB20 |
| Machine size | 5200L*2400W*2800Hmm |
| Machine weight | about 7000kg |
| Engine | inline 4-cylinder turbocharged diesel engine |
| Construction range | width ≤2000mm (road shoulder, ditch); height ≤600mm (curbstone, curbstone) |
| Forming method | high-frequency vibrator, attached vibration motor |
| Automatic leveling system | leveling range ±40mm |
| Paving, transfer speed | 1m-10m/min (frequency conversion speed regulation) |
| Model | KB30 |
| Machine size | 5200mmL*2400mmW*2900mmH |
| Construction range | width ≤2000mm; height <=1100m |
| Rated power | 65KW |
| Working voltage | AC38Ov |
| Starting mode | electric start |
| Cooling mode | water cooling |
| Forming method | high-frequency vibrator, attached vibration motor |
| Automatic leveling system | leveling range ±40mm |
| Minimum turning radius | 6800mm |
| Paving and transfer speed | 1m-10m/min |
What Is a Slipform Curb Machine?

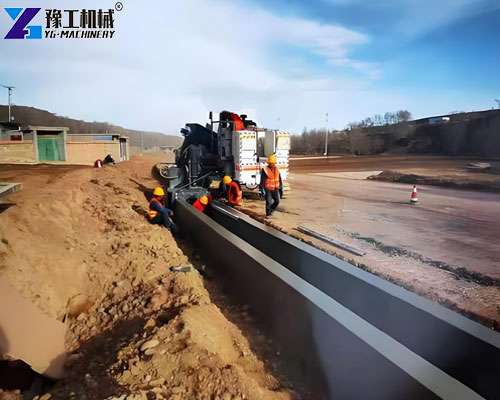

A slipform curb machine continuously extrudes and shapes fresh concrete into curbs, gutters, barriers, and other linear structures directly on-site. Unlike traditional precast methods, it forms curbs seamlessly, improving speed, structural integrity, and overall appearance.

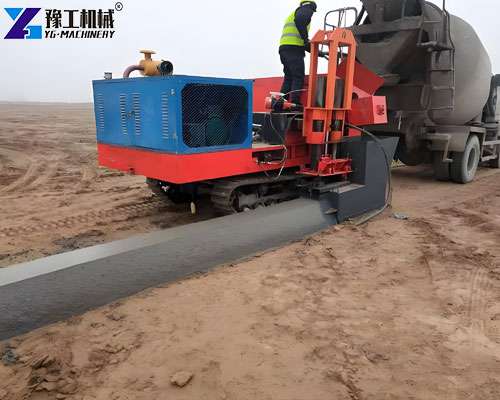

The machine automatically moves along preset guide lines while feeding, vibrating, compacting, and extruding concrete into the desired shape. This ensures continuous forming, stable dimensions, smooth surfaces, and a stronger integrated structure.
How Does It Work?
The machine operates using:
- High-torque auger: continuously pushes concrete into the mold.
- High-frequency vibrators: compact concrete for proper density and finish.
- Automatic movement: ensures consistent profile formation along the route.
This process eliminates joints between precast blocks, reducing future cracking, displacement, or loosening.
Main Advantages of Slipform Curb Machines
1. High Construction Efficiency
Slipform curb machines pave several meters per minute, reducing labor costs and project duration compared to manual installation.
2. Excellent Line Accuracy

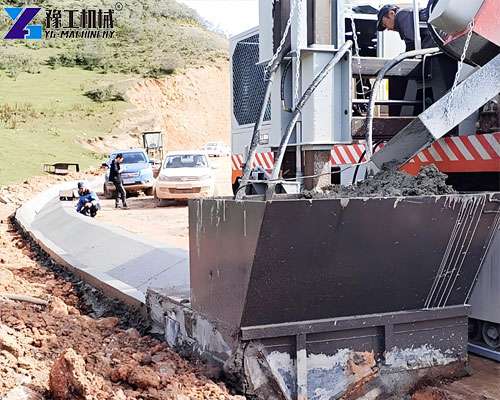

Automatic steering and guiding systems ensure precise alignment, consistent height, and smooth curves, ideal for highways, municipal roads, and airport drainage edges.
3. Stronger Integrated Structure
Continuous on-site pouring creates seamless concrete curbs with higher durability, impact resistance, and reduced maintenance.
4. Lower Overall Project Cost
Although initial investment is higher, the machine reduces labor, installation, transportation, and precast costs, making it cost-effective for medium to large projects.

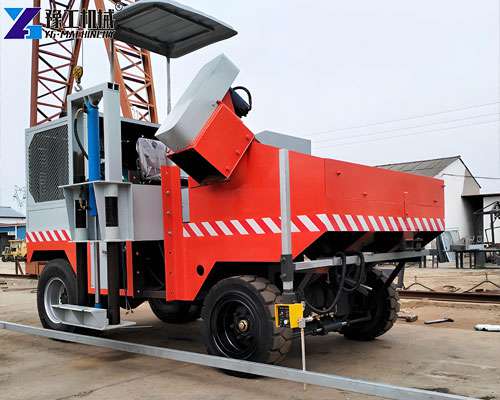

Core Features of YG Slipform Curb Machine
- Dual Automatic Steering System: reduces deviation on curves by over 95%.
- Anti-Slip Self-Locking Function: maintains preset speed on slopes without braking.
- Four-Track Crawler Chassis: strong grip and stability for uneven roads.
- Full-Time Four-Wheel Drive: allows pushing fully loaded concrete trucks on slight slopes.
- Turbocharged Diesel Engine: ensures powerful output even at high altitudes.
- High-Torque Hydraulic Auger: faster and smoother concrete feeding.
- Wear-Resistant Auger Blades: longer service life with minimal maintenance.
- Advanced Cooling System: water and air cooling prevent hydraulic overheating.
- Large Mold Adjustment Range: accommodates various curb widths and profiles.
Typical Applications

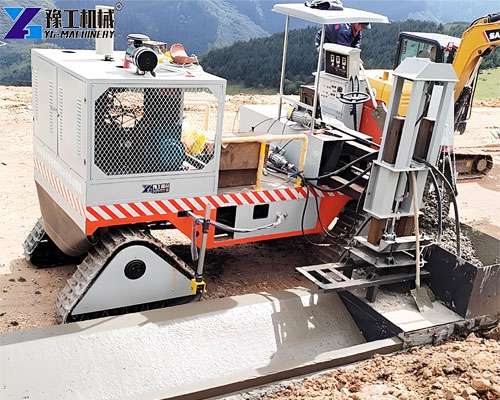

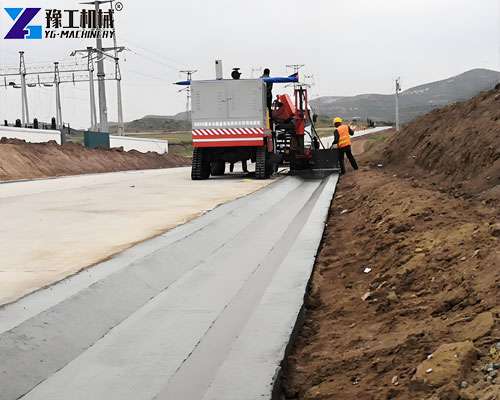

- Highway Shoulder Curbing: Forms continuous, straight, and highly durable curbs along highway edges, ensuring vehicle guidance, roadside safety, and long-term structural integrity.

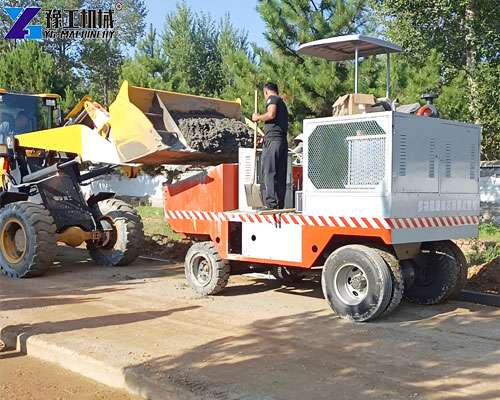

- Urban Road Median Installation: Precisely creates median barriers and traffic separation curbs, improving traffic flow management and enhancing road safety in cities.
- Airport Runway Edge Drains: Produces long, seamless drainage edges along runways, efficiently channeling water and maintaining runway safety standards.
- Parking Lot Perimeter Curbs: Constructs strong and visually clean curbs around parking areas, organizing traffic flow and protecting landscaping.
- Bicycle Lane Delineation: Installs defined safety curbs for bike lanes, separating cyclists from vehicles and reducing accident risks.
- Landscape Bordering: Forms decorative curbs for parks, gardens, and public spaces, combining functionality with aesthetic appeal.

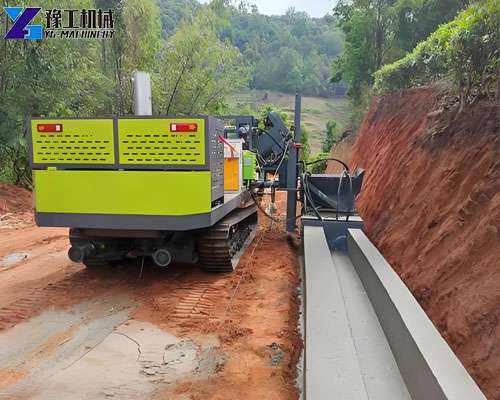

- Stormwater Gutter Formation: Efficiently shapes continuous gutters for urban drainage systems, reducing water pooling and improving stormwater management.
- Drainage Channel Edging: Creates precise edges for small canals and drainage channels, ensuring consistent water flow and structural stability.

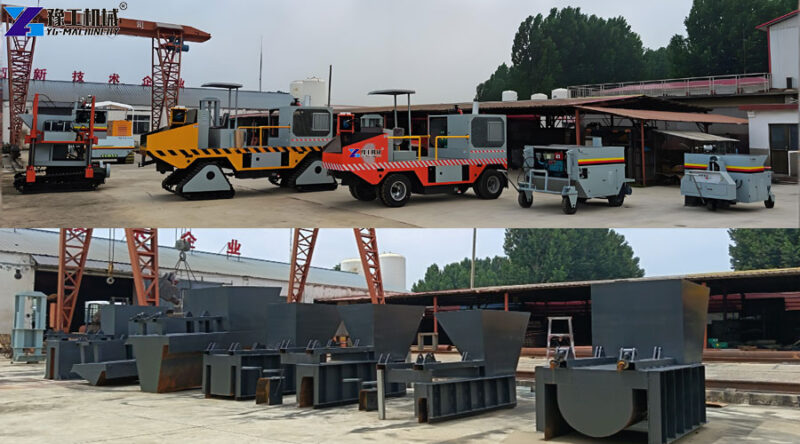

Customized Mold Solutions
Different curb types require specific molds. YG supports customized molds for:
- road curbs and gutters
- drainage channels
- traffic barriers
- landscape curbs
- shoulder curbs
Each curb profile requires one corresponding mold set. Customers are encouraged to provide curb width, height, and drawings for precise machine and mold recommendations.
Why Contractors Choose Slipform Curb Machines?
- Faster project completion
- Reduced labor dependence
- Consistent curb quality
- Stronger structural integrity
- Lower long-term maintenance
- Cleaner, professional appearance
Why Choose YG Machinery?
YG Machinery offers professional slipform curb machine solutions worldwide, including:
- customized machine configurations
- mold design and technical guidance
- overseas project support and training
- spare parts supply and global shipping
Whether for standard curb and gutter projects or fully customized paving solutions, YG ensures the right machine for your project, helping contractors achieve efficiency, durability, and precision.ch various construction conditions.
