In early 2026, a leading construction company in Abu Dhabi, UAE, faced challenges delivering concrete efficiently to high-rise buildings and confined urban sites. Searching for a reliable solution, they looked for a truck mounted concrete boom pump that could ensure fast, precise, and consistent concrete placement. After comparing several international suppliers, the company selected YG Machinery for its proven quality, competitive pricing, and dedicated after-sales support.
Customer Challenges
Before partnering with YG Machinery, the Abu Dhabi team encountered several obstacles:
- Limited access to high-rise construction sites: Traditional mixers and local pumps couldn’t reach every floor efficiently.
- Inconsistent concrete flow: Project timelines were often delayed due to material blockages and uneven placement.
- High maintenance costs: Locally sourced pumps required frequent repairs with limited technical support.
These pain points highlighted the need for a robust and reliable concrete boom pump truck for sale.

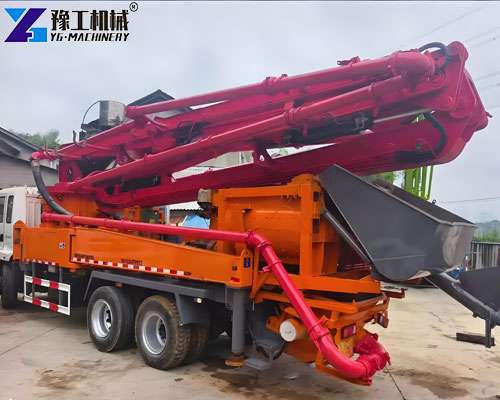

YG Machinery Solution: YG5320 Truck Mounted Concrete Boom Pump
YG Machinery supplied the YG5320 truck mounted concrete boom pump, designed to solve the customer’s challenges with high efficiency and safety.n addressed all critical pain points, ensuring smooth concrete delivery and minimizing project delays.
Key Technical Parameters
| Overall Length | 11,400 mm |
| Overall Width | 2,550 mm |
| Overall Height | 4,000 mm |
| Weight | 32,000 Kg |
| Chassis | Sinotruk HOWO, 6×4 |
| Engine | MAN, 253 kW / 2200 r/min, Euro VI |
| Mixer Type | 3 m³ Pan Mixer |
| Concrete Output | ≥30 m³/h |
| Distribution Valve | S-valve |
| Delivery Cylinder | Diameter 230 mm / Stroke 1,600 mm |
| Pipeline Diameter | 125 mm |
| Maximum Aggregate Size | 40 mm |
| Slump | 160–220 mm |
| Hydraulic System | Open type, 500L oil tank, automatic high/low pressure switch, air-cooled |
| Boom Type | 5-section RZ, vertical height 43.7m, horizontal length 39.7m, folding 5RZ |
| Legs / Supports | Front 6,800 mm / Rear 8,000 mm, X-type and swing legs, one-key start |
| Rotary Platform | ±360° |
| Control | Wireless remote (Techscape / Omron) |
Boom Pump Truck Features and Advantages
- High Performance & Durability – Advanced hydraulic system and S-valve ensure smooth concrete delivery with minimal downtime.significantly improved workflow, allowing the construction team to meet tight deadlines without compromising quality.
- One-Button Startup – Remotely start/stop the engine using a wireless controller, enhancing safety and convenience.
- Compact Design – Short length, low height, and lightweight chassis ensure excellent mobility and safe single-lane operations.
- Optimized Pipeline Design – Reduced elbows and smooth layout minimize pipe blockages.
- Real-Time Monitoring System – Displays faults and system status on a screen, allowing fast troubleshooting.
- Robust Boom & Supports – 5-section RZ boom with 43.7m vertical reach, 39.7m horizontal length, and X-type / swing legs ensures stable operations even on tight sites.
Usage and Results
After deploying the XNJ5320 boom pump truck, the Abu Dhabi team experienced:

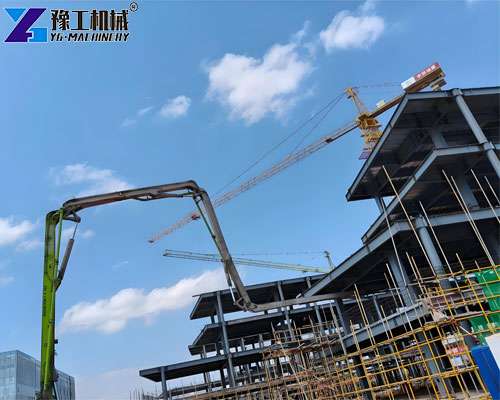

- Faster project completion: The long boom reached every floor without repositioning, saving labor and time.
- Consistent concrete flow: Reduced material wastage and improved efficiency on site.
- Easy operation & maintenance: Wireless remote operation and real-time monitoring simplified tasks and minimized downtime.
The concrete line pump truck for sale significantly improved workflow, allowing the construction team to meet tight deadlines without compromising quality.
Customer Feedback
“We have tried several concrete pumps from other suppliers, but YG Machinery’s XNJ5320THB truck mounted concrete boom pump exceeded our expectations. Delivery was on time, installation was smooth, and our construction schedule improved significantly. Highly recommended!”
– Project Manager, Abu Dhabi, UAE
Why Choose YG Machinery for UAE Projects?
- Wide range of boom pump truck for sale options, including long boom concrete pump and small concrete pump truck.
- Reliable, durable, and easy-to-maintain equipment suitable for high-rise construction.
- Professional guidance and after-sales service tailored to local conditions.
- Proven track record with UAE and other Middle East projects.
