Reliable Hydraulic Solution for Modern Pile Installation
Efficient pile installation plays an important role in foundation construction, marine engineering, infrastructure development, and renewable energy projects.
For contractors, choosing suitable pile driving equipment can directly affect construction speed, labor requirements, and overall project costs. Traditional piling methods may require more manpower, additional equipment, and longer installation time, especially when working on large-scale projects.
A hydraulic pile driver provides a flexible and efficient solution by using hydraulic power to generate strong vibration force for installing different types of piles. Designed for excavator mounting, it allows contractors to utilize existing machinery while improving construction efficiency.
Compared with traditional piling methods, hydraulic piling equipment offers:
- Faster installation efficiency
- Reduced labor requirements
- Flexible operation on different job sites
- Better adaptability for various pile types
For contractors looking for reliable foundation construction solutions, a hydraulic pile driver is an effective choice for modern piling applications.
Hydraulic Pile Driver Parameters
| Model | YGL300R | YGL400R | YGL500R | YGL600R | YGL390H |
| Operating weight(KG) | 7500 | 7600 | 7700 | 7800 | 7410 |
| Engine | Yuchai | Yuchai | Yuchai | Yuchai | Yuchai |
| Engine Model | YCD4J23G/4BTA3.9-C100 | YCD4J23G/4BTA3.9-C101 | YCD4J23G/4BTA3.9-C102 | YCD4J23G/4BTA3.9-C103 | YCD4J22G |
| Power（KW) | 82 | 82 | 82 | 82 | 85 |
| Emission standard | National II | National II | National II | National II | National II |
| Hydraulic pump brand | Domestic | Domestic | Domestic | Domestic | Domestic |
| Distributor brand | Domestic | Domestic | Domestic | Domestic | Domestic |
| Slewing motor brand | Domestic | Domestic | Domestic | Domestic | Domestic |
| Walking motor brand | Domestic | Domestic | Domestic | Domestic | Domestic |
| Dimension（L*W*H） | 4800x1980x2900mm | 5800x1980x2900 | 6800x1980x2900 | 7800x1980x2900 | 4500*2260*2970 |
| Driving mode | Hydraulic motor | Hydraulic motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Hammerhead model | 100 | 100 | 100 | 100 | Hydraulic hammerhead |
| Optional Accessories | The remote control can be installed | ||||
| A level can be installed | |||||
| A diameter less than 180mm can be equipped with dust collection | |||||

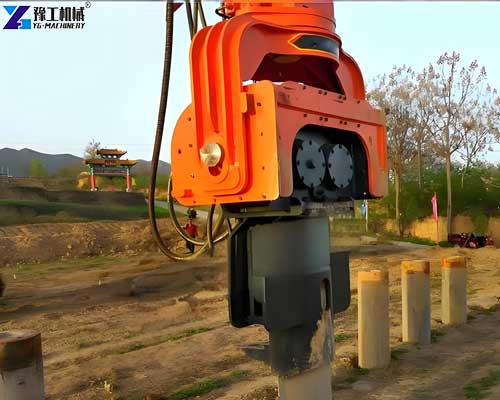

What Is a Hydraulic Pile Driver?
A hydraulic pile driver is construction equipment that uses hydraulic power to generate vibration force and drive piles into the ground.
The equipment is usually installed on an excavator and powered by the excavator’s hydraulic system. During operation, hydraulic energy drives the internal vibration mechanism, creating controlled vibration that reduces soil resistance and helps piles penetrate more smoothly.
As a type of hydraulic piling equipment, it is commonly used for installing:
- Steel sheet piles
- Steel pipes
- H-beams
- Solar foundation piles
- Other supporting piles
Unlike traditional impact methods, hydraulic vibration technology provides efficient pile installation with reduced impact on surrounding structures and working environments.
How Does a Hydraulic Pile Driver Work?
The working principle of a hydraulic pile driver is based on the combination of hydraulic power, vibration force, and soil conditions.
1. Hydraulic Power Connection
The excavator supplies hydraulic oil flow to the pile driver attachment.
The hydraulic system powers the motor and vibration components, providing stable energy during operation.
This design allows the equipment to work directly with existing excavators without requiring an independent power system.
2. Controlled Vibration Generation
Inside the equipment, hydraulic power drives eccentric components to create high-frequency vibration.
The vibration reduces friction between the pile and surrounding soil, allowing the pile to move downward with less resistance.
3. Efficient Pile Installation
After soil resistance is reduced, the pile can be installed more efficiently.
This working method makes hydraulic pile drivers suitable for projects requiring repeated pile installation, including:
- Foundation support
- Retaining structures
- River protection
- Temporary construction structures
Key Features of Hydraulic Pile Driver
1.Strong Hydraulic Performance
One of the major advantages of a hydraulic pile driver is its ability to utilize the excavator’s existing hydraulic system.
This provides:
- Stable operating performance
- Strong vibration capability
- Easy equipment integration
- Reduced preparation requirements
Compared with standalone piling equipment, excavator-compatible hydraulic solutions offer better flexibility for contractors who already own construction machinery.

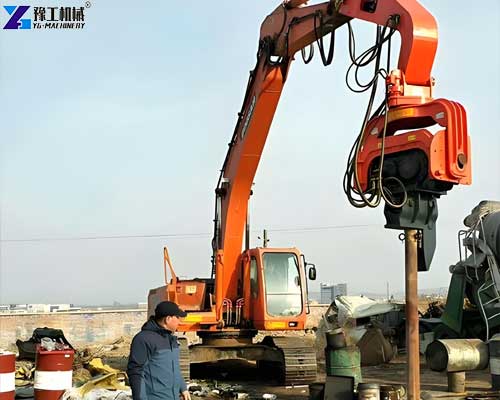

2.Efficient Solution for Sheet Pile Installation
Sheet pile installation is one of the most common applications of hydraulic piling equipment.
In construction projects, sheet piles are often used for:
- Cofferdams
- Excavation support
- Riverbank reinforcement
- Marine construction
A hydraulic pile driver works as effective sheet pile installation equipment, helping contractors complete piling tasks faster while reducing manual work.

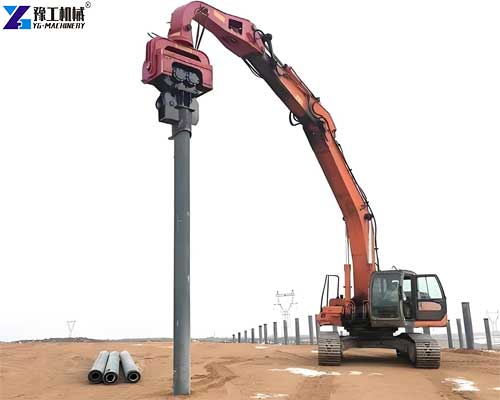

3.Flexible Excavator Compatibility
The excavator-mounted design allows contractors to use existing excavators as the power source.
The main benefits include:
- Easy transportation between job sites
- Reduced equipment investment
- Flexible operation in different environments
- Suitable for various construction projects
Different models can be matched according to excavator size, hydraulic flow, and project requirements.
4.Suitable for Multiple Pile Types
Different construction projects require different pile solutions.
A properly configured hydraulic pile driver can install:
- Steel sheet piles
- Steel pipes

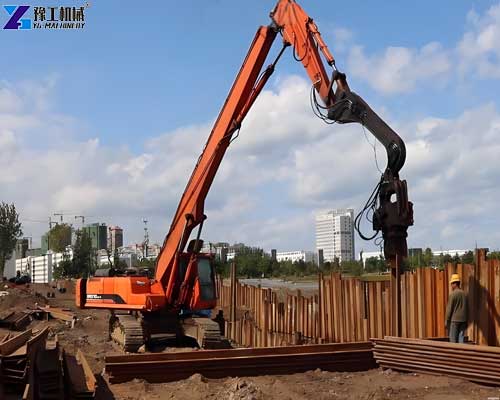

- H-beams
- Ground mounting piles
This flexibility allows contractors to handle different foundation and construction requirements with one reliable machine.
Applications of Hydraulic Pile Driver
1.Sheet Pile Construction Projects
Sheet pile projects often require efficient and reliable installation methods.
A hydraulic pile driver can support applications such as:
- Temporary retaining walls
- Foundation pits
- Flood protection structures
- Construction barriers
Its efficient operation makes it suitable for contractors involved in large-scale construction projects.

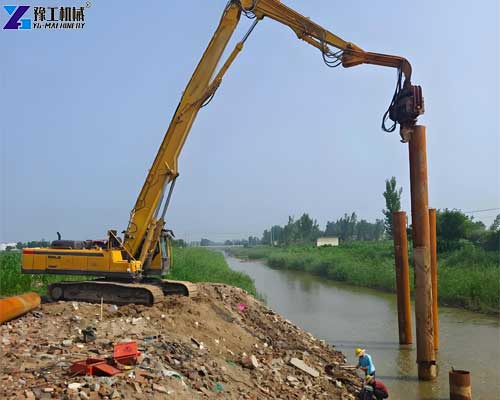

2.Marine and Water Infrastructure Projects
Marine construction environments often require durable piling solutions.
Hydraulic piling equipment can be used for:
- Wharf construction
- River protection projects
- Coastal reinforcement
- Cofferdam installation
The excavator-mounted design improves mobility and allows operation in challenging job sites.
3.Bridge and Road Construction
Infrastructure projects require stable foundation support and efficient construction processes.
Hydraulic pile drivers can assist with:
- Temporary support structures
- Foundation reinforcement
- Retaining systems
Their flexibility helps contractors complete piling operations more efficiently.

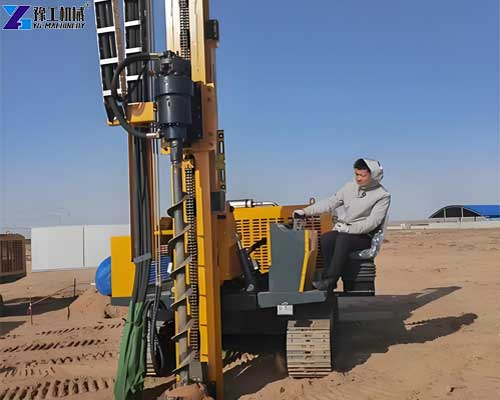

4.Solar Foundation Installation
Solar projects require large quantities of foundation piles to support mounting structures.
A hydraulic pile driver can help improve installation efficiency for:
- Solar pile installation
- Ground-mounted solar systems
- Steel support structures
Hydraulic Pile Driver vs Traditional Piling Methods
When selecting piling equipment, contractors need to consider efficiency, operating conditions, and project requirements.
Hydraulic Pile Driver
Advantages:
- Uses existing excavator hydraulic power
- Requires fewer operators
- Provides efficient pile installation
- Suitable for multiple applications
- Easy to transport between projects
Traditional Manual Installation
Limitations:
- Higher labor requirements
- Slower installation speed
- Difficult for large-scale projects
- Increased long-term operating costs
Impact Piling Methods
Impact piling can provide strong driving force, but may create:
- Higher noise levels
- Strong impact vibration
- More disturbance to nearby areas
For projects requiring controlled and efficient installation, hydraulic solutions provide a balanced alternative.
How to Choose the Right Hydraulic Pile Driver?
Selecting suitable pile driving equipment requires consideration of several factors.
Excavator Compatibility
Before purchasing, contractors should confirm:
- Excavator tonnage
- Hydraulic flow rate
- Working pressure requirements
Proper matching ensures stable performance and longer service life.
Pile Requirements
Different piles require different equipment configurations.
Important factors include:
- Pile material
- Pile size
- Installation depth
- Soil conditions
Professional manufacturers can recommend suitable solutions based on actual project requirements.
Working Environment
Construction conditions also influence equipment selection.
Consider:
- Available working space
- Transportation requirements
- Ground conditions
- Required installation efficiency
A customized solution can help achieve better project results.
Why Choose Elephant Machinery Hydraulic Pile Driver?
Elephant Machinery provides customized construction equipment solutions for international customers.

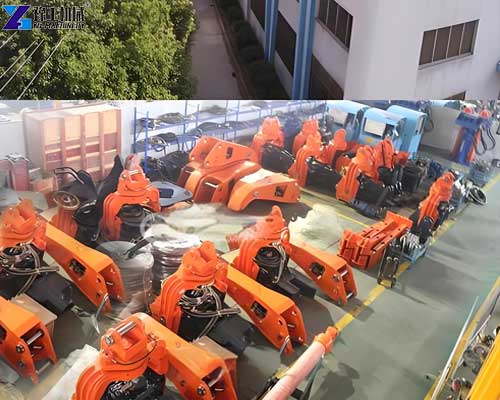

1.Factory Manufacturing Capability
With professional production facilities and engineering experience, Elephant Machinery can manufacture hydraulic piling equipment according to different project requirements.
2.Customized Engineering Support
Every construction project has different challenges.
Our engineers provide solutions based on:
- Excavator specifications
- Pile requirements
- Working conditions
- Customer expectations
3.Quality Control and Reliable Performance
Each hydraulic pile driver is manufactured with strict quality standards.
Before delivery, equipment is inspected to ensure:
- Stable operation
- Reliable components
- Long service life
4.Complete Customer Support
Elephant Machinery provides support including:
- Equipment selection
- Technical communication
- Operation guidance
- After-sales assistance
We help customers select suitable piling solutions for their construction projects.
Conclusion: Efficient Hydraulic Solution for Modern Piling Projects
A hydraulic pile driver is a practical solution for contractors who need efficient and flexible pile installation equipment.
With hydraulic power, excavator compatibility, and wide application possibilities, it helps improve construction efficiency while reducing labor requirements.
From sheet pile construction to marine engineering and foundation projects, Elephant Machinery provides customized hydraulic piling solutions designed for different working conditions.
If you are looking for reliable pile driving equipment or a customized hydraulic pile solution, contact Elephant Machinery for professional support.
