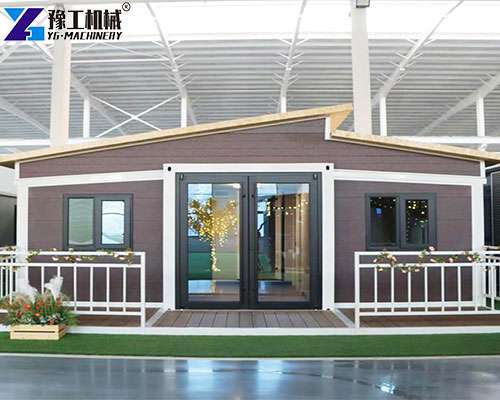

40ft Expandable Container House

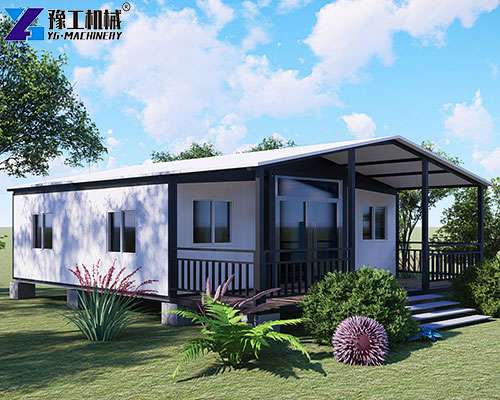

40ft expandable container house has gradually become the preferred temporary construction solution for government resettlement, construction camps, and overseas project departments due to its spacious interior space, comfortable living experience, quick erection and support for wind reinforcement.

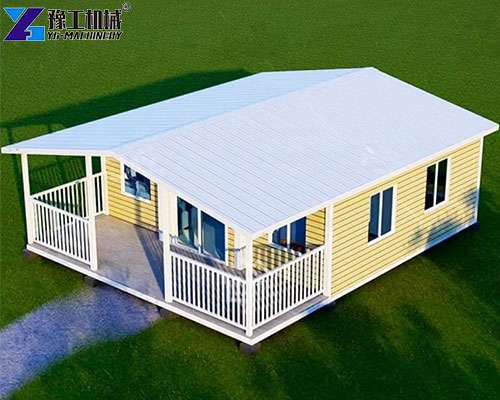

folding container house
folding container house

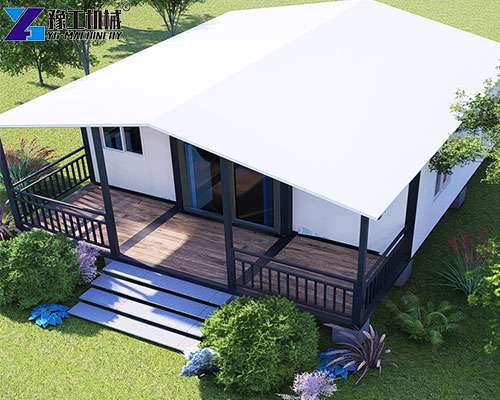

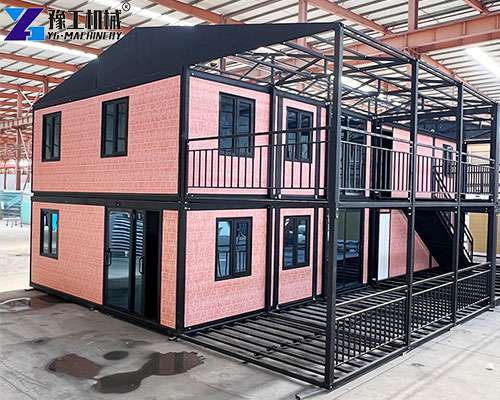

foldable container house
foldable container house

YG Foldable Container Homes Parameters

20FT Basic Characteristics   External dimension (mm)W6320*L5900*H2480(Side 2270)
Internal dimension (mm)W6160*L5560*H2240(Side 2150)
Folded state (mm)W2200*L5900*H2480
Total mass (kg)2500
30FT Basic Characteristics   External dimension (mm)W6360*L9000*H2480(Side 2180)
Internal dimension (mm)W6200*L8660*H2240(Side 2060)
Folded state (mm)W2200*L9000*H2480
Total mass (kg)3750
40FT Basic Characteristics   External dimension (mm)W6240*L11800*H2480(Side2180)
Internal dimension (mm)W6080*L11540*H2200(Side2060)
Folded state (mm)W2200*L11800*H2480
Total mass (kg)4400
Smaller Fold Size   External dimension (mm)W4820*L5900*H2480(Side2270)
Internal dimension (mm)W4660*L5560*H2240(Side2150)
Folded state (mm)W700*L5900*H2480
Total mass (kg)1850

Spacious Space, Comfortable Living Experience

Compared with the conventional 20ft container house, the 40ft expandable container house has an internal space of nearly 26 square meters after unfolding, which can be flexibly divided into 3 rooms and 2 bathrooms or 2 rooms, 1 hall and 1 bathroom layout structure, suitable for 4-6 people. The wide space can not only place standard beds, closets and sofas, but also retain the activity area, which is not depressing for long time living.

The interior walls are made of high-quality insulated sandwich panels for effective heat insulation and noise reduction, with large windows and LED lighting system to create a ventilated, bright and comfortable living environment. For people who need to stay in project camps for a long period of time or live temporarily after a disaster, this expandable modular house is an ideal choice that balances efficiency and humanity.

fix to the ground
fix to the ground
roof is fixed to the ground by rope
roof is fixed to the ground by rope

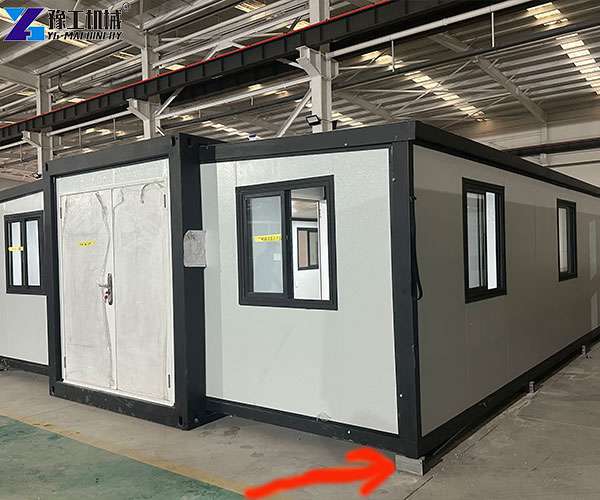

square tube support at bottom
square tube support at bottom

Reinforced for Typhoon Regions

YG 40ft folding house is specially adapted to typhoon-prone countries or regions, providing a number of structural reinforcement features:

  1. The roof is equipped with multi-point anchors, which can be connected to wind-resistant ropes and fixed to ground piles or heavy objects;
  2. The bottom of the room is reserved with reinforcement bolt holes for installing ground bolts or steel base;
  3. Using thickened steel structural keel to improve the overall wind strength;
  4. The roof is constructed with drainage slopes to prevent water leakage.

Through these simple but practical reinforcement measures, the product has performed stably against Category 12 typhoons in many places and is widely used in island-type countries and post-disaster reconstruction areas.

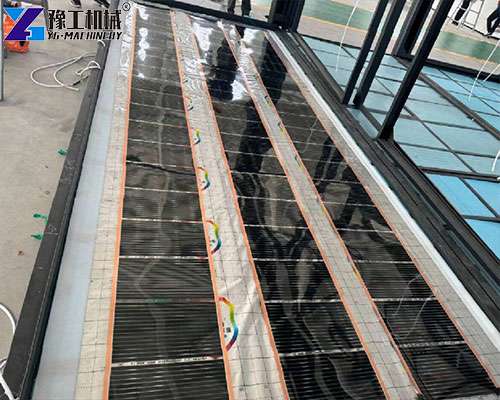

graphene floor
graphene floor

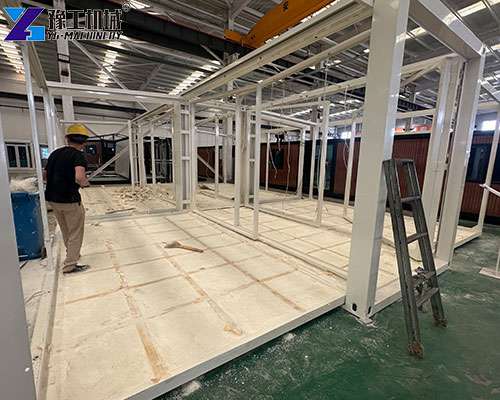

polyurethane floor
polyurethane floor

Flexible Customization and Function Upgrade to Meet Individual Needs

YG supports full customization service, which is applicable to the diverse needs of different countries and projects:

  1. Size customization: support the appropriate widening of unit width/height, or the use of multiple modules spliced together;
  2. Color appearance: can be customized according to the corporate VI color, support military green, gray and white, blue and white, camouflage and so on;
  3. Interior upgrading: can be retrofitted with metal carving plate interior wall to enhance thermal insulation and aesthetics;
  4. Flooring upgrade: provide polyurethane flooring (anti-slip and wear-resistant) or graphene intelligent flooring (support electric heating);

Facility configuration:

  1. solar panel system for partial power independent supply;
  2. Split or embedded air-conditioning system;
  3. restroom module, including shower, toilet, and sink in one structure;
  4. Optional kitchen module to meet the needs of long-term living.

As a high standard expandable container homes for sale program, customers can choose the configuration flexibly according to the project cycle.

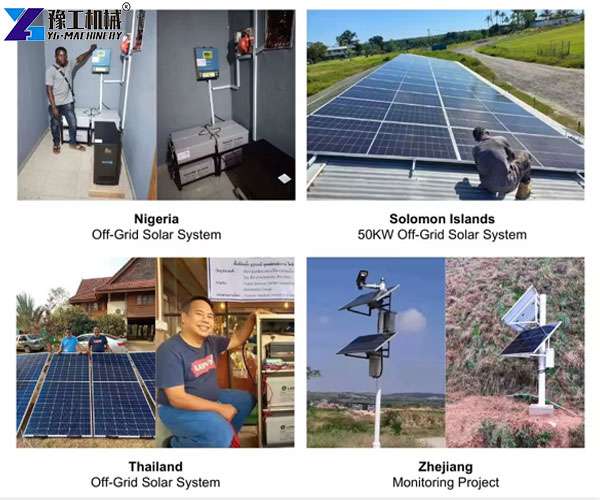

solar energy system
solar energy system

Frequently Asked Questions

Q: How many people are needed to expand a 40ft expandable container house?
A: Generally speaking, 2-3 people can be deployed, with forklift or small lifting equipment, the deployment can be completed in 30 minutes to 1 hour.

Q: How about transportation? How many sets can be packed in one container?
A: The folding room is a compressed transportation structure, a 40HQ container can hold 2-3 sets of 40ft folding room, which greatly saves transportation cost.

Q: Can it be reused? How long is the service life?
A: The structure supports repeated folding, and the normal service life is about 30 years, which is suitable for multi-project relocation.

Q: Does it support export? Is there any relevant certification?
A:YG products support the export of global, can provide CE, ISO and other certifications, and support third-party inspection.

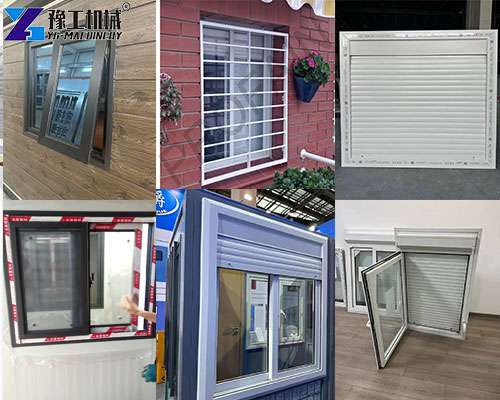

window styles
window styles

Customer Case: Post-hurricane resettlement project in a Caribbean island

In October 2023, YG provided the first 20 sets of 40ft expandable container house to an island country in the Caribbean for temporary housing and resettlement after a hurricane. The client was very pleased with the space, comfort and reinforced design of the product.

“We were worried that the space was too small and unsafe when the wind came. However, YG’s folding house not only can put down double beds and storage cabinets, but the roof can also be fixed with wind-resistant ropes, and on-site installation is also very fast. It’s perfect for our kind of environment in the windy season.” –Feedback from the person in charge of this project.

The client purchased a second batch of 40 additional sets for long-term primary care site construction after the project.

Recommended Supporting Products

YG also provides multi-functional facilities for use with the 40ft folding house:
portable toilets, solar energy system, diesel generator, swimming pool, shower module and so on.
YG’s 40ft folding house can be used as a complete and efficient mobile campsite in the true sense of the word “turnkey”.

Whether it is a hurricane-stricken area, remote island camps, or multinational engineering projects, we can provide you with professional, fast and reliable service. contact us to know more details now!【WhatsApp/WeChat/Phone】+86 13837115193.
