A polyurea spray machine is designed for contractors and industrial applicators who need to apply high-performance protective coatings quickly, evenly, and reliably. From waterproofing roofs and foundations to protecting tanks, pipelines, truck beds and industrial floors, polyurea coatings require precise temperature control, stable pressure and accurate material mixing to achieve the desired performance.
Traditional coating methods can be slow and labor-intensive. Brush or roller-applied coatings often require multiple layers and long curing times, while inconsistent mixing may affect adhesion and coating quality. A professional polyurea spraying system helps solve these problems by delivering heated materials at high pressure for fast mixing and uniform application.
Whether you are starting a polyurea coating business or upgrading existing spraying equipment, choosing the right machine can significantly improve application efficiency and coating quality.
Polyurea Spray Machine Parameters
| Model | YG-H-T50 | YG-H5600T | YG-H-T40 | YG-H5600 | YG-Q30 | YG-IIIH |
| Power Supply | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/220V | 380V/220V |
| Heating Power | 25 kW | 25 kW | 22 kW | 22 kW | 15 kW | 9.5 kW |
| Total Power | 29 kW | 29 kW | 26 kW | 26 kW | 15.5 kW | 9.5 kW |
| Drive Type | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Pneumatic | Pneumatic |
| Material Output | 2–8 kg/min | 2–8 kg/min | 2–12 kg/min | 2–12 kg/min | 2–10 kg/min | 2–10 kg/min |
| Air Supply | ≥0.6 m³/min | ≥0.6 m³/min | ≥0.6 m³/min | ≥0.6 m³/min | 0.5–1 MPa ≥1 m³/min | 0.5–0.8 MPa ≥0.9 m³/min |
| Max Output Pressure | 36 MPa | 36 MPa | 36 MPa | 36 MPa | 28 MPa | 25 MPa |
| A/B Ratio | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 | 1:01 |
| Heating Temperature Range | 0–85°C | 0–85°C | 0–85°C | 0–85°C | 0–85°C | 0–80°C |
| Packaging Size (LWH) | 1350×1150×1650 mm | 1350×1150×1650 mm | 1250×1050×1500 mm | 1250×1050×1500 mm | 850×850×1650 mm | 850×850×1650 mm |
| Gross Weight | 420 kg | 420 kg | 350 kg | 350 kg | 200 kg | 205 kg |
| Air Compressor | – | 4 kW, 0.5 m³/min | 4 kW, 0.5 m³/min | – | 7.5 kW, 0.9–1.0 m³/min, 8 bar | – |

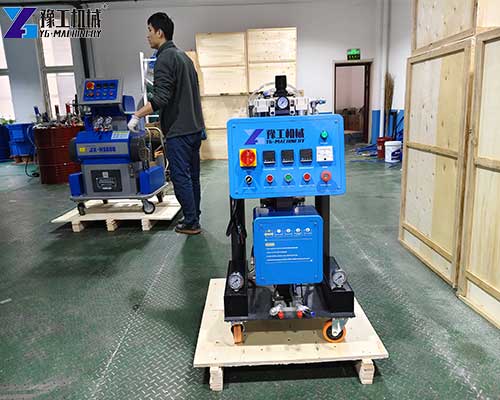

What Is a Polyurea Spray Machine?
A polyurea spray machine is a high-pressure plural-component spraying system designed to process two-component polyurea materials.
The machine heats, pressurizes and delivers the two components separately before they are mixed inside the spray gun. This process allows the material to react rapidly and form a seamless protective coating on the target surface.
A typical polyurea spraying system includes:
- High-pressure proportioning pump
- Independent material heating system
- Heated hoses
- Spray gun
- Material transfer pumps
- Digital temperature and pressure control
- Mobile frame or equipment platform
Because polyurea reacts extremely quickly, stable equipment performance is essential. Even small variations in temperature, pressure or mixing ratio can affect the final coating.
Why Do Contractors Need a Professional Polyurea Spraying Machine?
Polyurea is known for its fast curing speed, flexibility, chemical resistance and waterproofing performance. However, these advantages also make the material demanding to apply.
Manual application methods cannot provide the same mixing accuracy and spraying speed required for fast-reacting polyurea materials.
A professional high pressure polyurea spray machine helps contractors overcome several common challenges.
1.Fast material reaction: Polyurea can react within seconds after mixing. The spraying equipment must deliver both components at a controlled ratio and stable pressure.
2.Uneven coating thickness: Manual coating methods can easily create inconsistent thickness. High-pressure spraying helps applicators produce a more uniform and continuous coating.
3.Poor adhesion caused by unstable temperature: Material temperature directly affects viscosity and spraying performance. Heated polyurea equipment maintains suitable processing conditions during application.
4.Low productivity on large projects: Large roofs, tanks, floors and infrastructure projects require fast coverage. Spray application can significantly improve working efficiency compared with traditional coating methods.
Key Features of Our Polyurea Spray Machine
A reliable polyurea spraying system is not simply a pump. It is an integrated proportioning and heating system designed to maintain stable processing conditions throughout the application.
1. High-Pressure Spray Performance
High-pressure output helps atomize the material effectively and supports proper mixing inside the spray gun.
This is especially important for:
- Fast-set polyurea coatings
- Large-area waterproofing
- Industrial protective coatings
- Thick coating applications
Stable pressure also helps operators maintain a consistent spray pattern.
2. Independent Material Heating
Polyurea components often require controlled temperatures before spraying.
The machine uses independent heating systems to maintain suitable temperatures for each component. This improves material flow and helps ensure stable spraying performance.
Accurate temperature control is particularly valuable when working in changing ambient conditions.
3. Precise Mixing Ratio Control
Polyurea is a two-component material. Maintaining the correct proportion between Component A and Component B is essential for coating performance.
A professional proportioning system helps ensure:
- Stable material delivery
- Consistent mixing
- Reliable curing performance
- Reduced material waste
- Improved coating quality
For contractors handling high-value coating projects, stable proportioning can make a significant difference in final results.
4. Heated Hose System for Long-Distance Spraying
On large construction sites, the spray machine may need to remain in one location while operators work several meters away.
Heated hoses help maintain material temperature during delivery, reducing temperature loss between the machine and spray gun.
This provides greater flexibility when spraying:
- Large industrial floors
- Storage tanks
- Roofing systems
- Bridges
- Pipelines
- Infrastructure structures
5. Digital Temperature and Pressure Monitoring
Modern polyurea spraying equipment allows operators to monitor important working parameters more easily.
Depending on the machine configuration, operators can monitor:
- Material temperature
- Hose temperature
- Spray pressure
- System operating status
Clear parameter control makes equipment operation easier and helps reduce application inconsistencies.
Polyurea Spray Machine Applications
Polyurea technology is widely used where fast curing, waterproofing and durable surface protection are required.

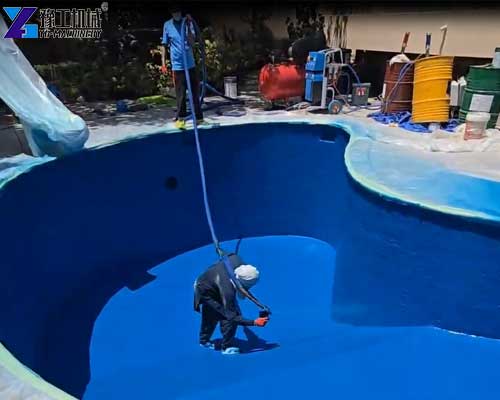

1.Waterproofing Projects
Polyurea can create a seamless waterproof membrane without traditional sheet overlaps.
Typical applications include:
- Flat roofs
- Concrete roofs
- Foundations
- Basements
- Underground structures
- Water containment structures
Its rapid curing time allows projects to progress faster, especially when downtime must be minimized.
2.Industrial Tank Coating
Storage tanks are often exposed to moisture, chemicals and corrosive environments.
A sprayed polyurea coating can provide a continuous protective layer for suitable tank surfaces.
Applications may include:
- Water storage tanks
- Chemical containment areas
- Industrial processing tanks
- Secondary containment structures

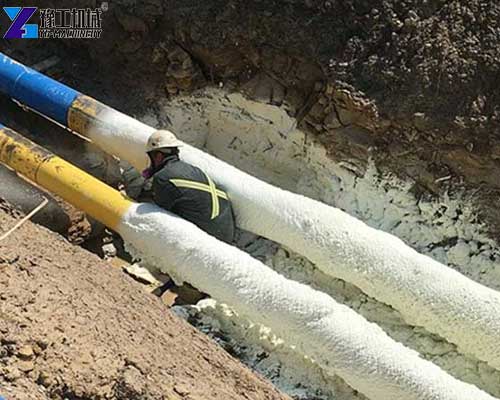

3.Pipeline Protection
Pipelines require reliable protection against corrosion, moisture and mechanical damage.
A high-pressure polyurea spray system can be used to apply protective coatings to suitable pipeline surfaces and related infrastructure.
4.Truck Bed and Vehicle Protection
Polyurea coatings are commonly used for protective liners because of their abrasion resistance and flexibility.
Typical applications include:
- Truck beds
- Pickup liners
- Commercial vehicles
- Construction equipment
- Agricultural machinery
5.Industrial Floor Coating
Factories and workshops require durable floor protection in high-traffic environments.
Polyurea coatings can be used in applications requiring resistance to abrasion, moisture and mechanical impact.
Polyurea Spray Machine vs Traditional Coating Methods
For contractors considering whether to invest in professional spraying equipment, the main difference is usually efficiency and application consistency.
| Application speed | Fast | Relatively slow |
| Curing time | Extremely fast | Often longer |
| Coating continuity | Seamless spray coating | Multiple passes may be required |
| Large-area efficiency | High | Lower |
| Thickness control | More consistent | Operator dependent |
| Labor requirement | Reduced on large projects | Higher |
| Suitable for industrial projects | Excellent | Limited for large applications |
For small repair work, manual coating may still be suitable. However, contractors handling continuous waterproofing or industrial coating projects can benefit significantly from professional spraying equipment.
How to Choose the Right Polyurea Spray Machine?
Not every project requires the same equipment configuration. Before purchasing a machine, consider the following factors.
1.Project Size
For small and medium projects, portability and easy operation may be important.
For large industrial projects, contractors may need higher output and longer heated hose capability.
2.Material Type
Confirm whether the equipment is designed for the specific material you plan to spray.
Different materials may have different requirements for:
- Temperature
- Viscosity
- Pressure
- Mixing ratio
3.Power Supply
Before selecting a machine, check the available electrical conditions at your job site.
Power configuration can affect equipment selection, especially for international projects.
4.Hose Length
Longer hoses provide greater working flexibility but require effective temperature maintenance.
Choose a hose configuration based on your typical project size and working environment.
5.After-Sales Support
Polyurea spraying equipment is a professional system that requires proper setup and maintenance.
When choosing a supplier, consider whether they can provide:
- Machine operation guidance
- Technical support
- Spare parts supply
- Maintenance recommendations
- Remote troubleshooting assistance
Polyurea Spray Machine for Contractors and Coating Businesses
Investing in professional equipment can help coating contractors expand into higher-value projects.
With the right polyurea spraying system, businesses can serve applications such as waterproofing, industrial protection, infrastructure maintenance and vehicle coatings.
The main business advantages include:
- Faster project completion
- Higher daily coverage
- Reduced dependence on manual application
- More consistent coating quality
- Ability to handle larger projects
- Expanded service opportunities
For companies entering the spray coating industry, equipment reliability is particularly important. A machine with stable heating, accurate proportioning and consistent pressure can reduce operational problems and improve project efficiency.
Polyurea Spray Machine and Polyurethane Spray Machine: What’s the Difference?
Although the equipment categories may appear similar, polyurea spraying and polyurethane spraying are used for different material applications.
A polyurea spray machine is primarily designed for fast-reacting polyurea coatings used in waterproofing, corrosion protection and industrial surface protection.
A polyurethane spray machine is commonly associated with polyurethane materials used for applications such as spray foam insulation, sealing and related coating processes.
When selecting equipment, it is important to confirm the material type and processing requirements rather than choosing based only on the machine name.
The right equipment should match your material system, project application and production requirements.
Why Choose Our Polyurea Spray Equipment?
For professional contractors, machine stability directly affects project quality and operating costs.
Our polyurea spray machines are designed to provide reliable processing performance for demanding coating applications.
Key advantages include:
- Stable high-pressure output
- Accurate proportioning performance
- Independent material heating
- Heated hose configuration
- Easy-to-monitor operating parameters
- Suitable for multiple polyurea applications
- Flexible configurations for different project requirements
- Technical support and spare parts availability
We can also recommend suitable equipment configurations based on your material type, application requirements and project scale.
Get the Right Polyurea Spray Machine for Your Project
Choosing a polyurea spray machine is not only about comparing equipment prices. The right system should provide stable performance, efficient application and long-term reliability.
Before selecting a model, it is helpful to provide information about:
- Polyurea material type
- Project application
- Required daily output
- Working area
- Power supply
- Required hose length
- Local operating conditions
Our technical team can help you select a suitable polyurea spraying solution based on your actual project requirements.
Looking for a reliable polyurea spray machine for waterproofing or industrial coating projects? Contact us today to get professional equipment recommendations and a customized quotation.
FAQ About Polyurea Spray Machines
1.What is a polyurea spray machine used for?
A polyurea spray machine is used to apply two-component polyurea coatings for waterproofing, corrosion protection, industrial flooring, tank lining, vehicle protection and other protective coating applications.
2.Why does polyurea require high-pressure spraying equipment?
Polyurea materials react very quickly after mixing. High-pressure proportioning equipment helps maintain stable temperature, pressure and mixing conditions for proper application.
3.Can one machine spray different polyurea materials?
This depends on the material requirements and machine configuration. Always confirm the material’s processing temperature, viscosity and mixing requirements before selecting equipment.
4.How much does a polyurea spray machine cost?
The price depends on factors such as pressure capacity, heating power, output, hose configuration and control system. Contact the supplier with your application requirements for a suitable configuration and quotation.
5.What information should I provide before buying a polyurea spray machine?
You should provide your material type, application, project size, required output, available power supply and preferred hose length. This information helps ensure the selected equipment matches your actual spraying requirements.
