Drill Rig

Drill rig is a specialized equipment used for drilling below the surface of the ground, which is widely used in the fields of water mining, geological exploration, foundation construction and resource development. It is an irreplaceable tool in modern engineering construction with its efficient penetrating power and ability to adapt to a variety of strata.

This article will focus on water well drilling rigs, core drilling rigs, small drilling rigs, as well as submerged drilling rigs, rotary drilling rigs, rotary spraying drilling rigs and other common types, in-depth introduction of their application scenarios and technical highlights.

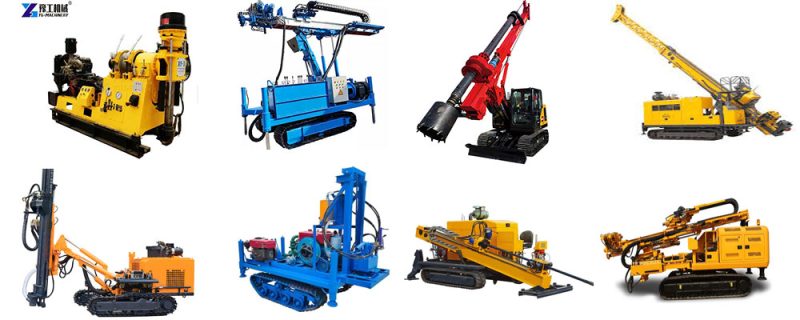

Types of Drilling Rigs

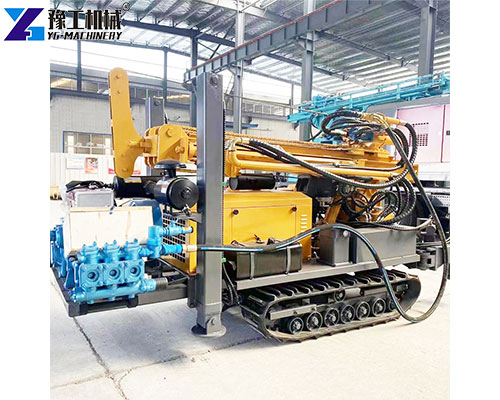

Water Well Drilling Rigs

Model	YG-180	YG–200	YG–300	YG–300A	YG–400	YG–600
Drilling hole diameter	140-254mm	140-305mm	140-325mm	140-325mm	140-350mm	140-350mm
Drilling depth	180m	200m	300m	300m	400m	600m
One-time advance length	3.4m	3.4m	6.6m	3.4m	6.6m	6.6m
Walking speed	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h
Climbing angles (Max.)	30	30	30	30	30	30
Equipped capacitor	55kw	65-70kw	84kw	75.8kw	92kw	115kw
Using air pressure	1.7-2.5mpa	1.7-3.0mpa	1.7-3.3mpa	1.7-3.0mpa	1.7-3.5mpa	1.7-3.5mpa
Air consumption	17-31m³/min	17-30m³/min	17-35m³/min	17-35m³/min	17-35m³/min	17-35m³/min
Drill pipe length	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m,6.0m	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m,6.0m	1.5m, 2.0m, 3.0m,6.0m
Drill pipe diameter	76mm, 89mm	76mm, 89mm	89mm, 102mm	76mm, 89mm, 102mm	89mm,102mm,108mm	102mm,108mm,114mm
Rig lifting force	15t	12t	20t	16t	22t	28t
Swing speed	45-65rpm	45-70rpm	45–115rpm	40–70rpm	45-115rpm	45–115rpm
Swing torque	3200-4600(N.m)	3500-4800(N.m)	6200-8500(N.m)	5700-7500(N.m)	6500-9000(N.m)	8500-11000(N.m)
Dimension	3800*1500*2200mm	4000*1750*2450mm	5900*2000*2850mm	4100*1950*2600mm	5900*2100*2850mm	6000*2200*2850mm
Weight	4500kg	5800kg	9000kg	7000kg	10000kg	12000kg

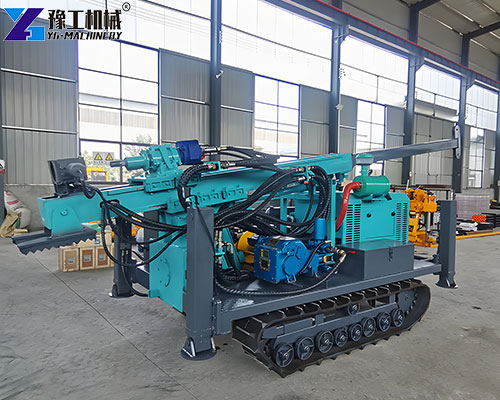

Core Drilling Rig

Model	YGX-400	YGX-600	YGX-800	YGX-1000
Drilling Depth(M)	180-400-500	200-600-650	400-800-1000	500-1000-1100
Rated pressure(MPA)	21	21	25	28
Rated Flow(L/min)	168	192	260	300
Heat Dissipation Mode	Air cooling+water cooling
Engine Brand	Yuchai	Yuchai	Yuchai	Cummins
Rated power/speed	78kW/ 2400r/min	92kW/ 2400r/min	92kW/ 2400r/min	154kW/2400r/min
Drilling Angle(°)	0-90	45-90	45-90	45-90
Lifting Force(T)	12	16	24	30
Feed Force(T)	6	8	12	15
Hydraulic Mud pump flow	30-90（L/min）	30-90（L/min）	90-180（L/min）	90-180（L/min）
Hydraulic Mud pump power	4-7(MPA)	4-7(MPA)	4-7(MPA)	4-7(MPA)
Dimension	4000*1900*1800mm	4000*2000*1800mm	5500*2100*2000mm	6000*2200*2400mm
Weight	4.3T	4.5/5.5T	6.5T	7.5T

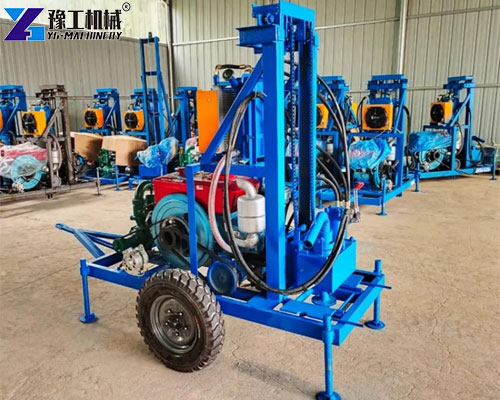

portable water well drilling rigs

Model	YG-240-22P	YG-240-30P
Dimension	1450*1550*1970mm	2000*1230*2090mm
Weight	200kg	200kg
Drill rod diameter	42mm	51mm
Drill rod length	1.5m/unit	1.5m/unit
Rod change method	Full automatic screw thread	Full automatic screw thread
Max drilling depth	200m	200m
Diesel engine power	22HP	30HP
Drilling hole diameter	Within 280mm	100mm-240mm
Lifting height	2.5m	Max 2.5m
Lifting force	1000kg	2000kg

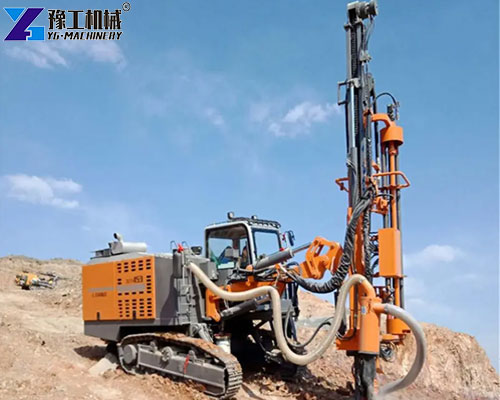

DTH Drilling Rig

Model	YGK130	YGK150	YGK153	YGK300
Drilling Depth	25M	30M	35M	40M
Max Drilling Diameter	130mm	150mm	225mm	275mm
Power	37Kw	45Kw	55Kw	70Kw
Working Pressure	0.7~2.4Mpa
Air Consumption	9~13m3/min	10~15m3/min	12~18m3/min	15~22m3/min
Weight	3400Kg	5900Kg	6300Kg	8000Kg
Dimension	6500*2110*2400mm	6500*2110*2400mm	6680*2110*2500mm	7600*2350*2800mm

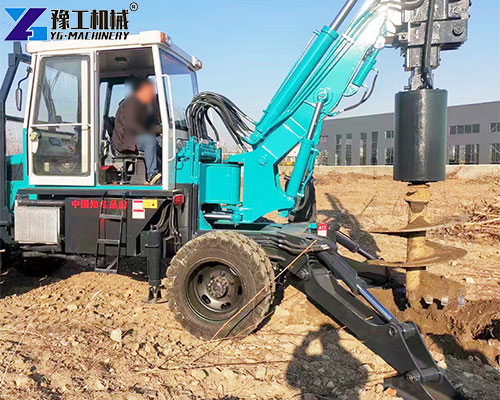

Rotary Drilling Rig

Dimensions (mm)	7900*2260*3100
Vehicle mass (kg)	8000
Wheelbase (mm)	3150
Wheelbase (mm)	Front 1400 After 1060
Drilling depth (m)	13
Drilling diameter (mm)	600-1600
Rotation angle	180 degree
Walking speed (km/h)	50
Gear pump model	CBJT2080
Hydraulic system working pressure (Mpa)	20-25
Hydraulic system displacement (ml/r)	80
engine model	4108
Engine power (kW)	88

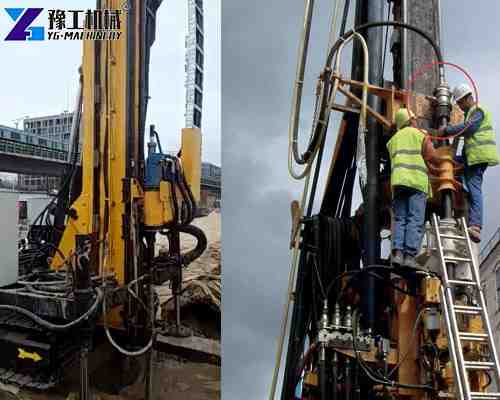

Jet Grouting Machine

Torque	7500 N.m	Moving head speed	0-170r/min
Stroke	3400mm	Lifting force	70kN
Feeding force	36kN	Drilling depth	130-170m
Drill Pipe Diameter	50-250 mm	Drilling angle	0~90°
Power	55 Kw+18.5Kw	Weight	5900 kg
Horizontal movement	900mm	Hydraulic Working Pressure	20 MPa
Gradeability	25°	Walking speed	1km/h
other functions	Added lift lift/built-in gripper
Overall dimensions (L * W * H)	Construction dimension  3550×2200×5650mm
	Transport dimension   5600×2200×2100mm

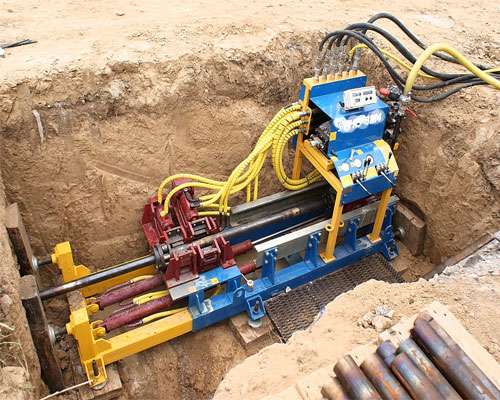

Horizontal Directional Drill Rig

Equipped with automatic guiding system, high-pressure mud pump and wireless positioning device, YG’s horizontal directional drilling rigs have the advantages of stable propulsion, precise orientation and strong drag force, which satisfy the demand for low disturbance and high precision in urban construction.

Model	YG-160A	YG-180	YG-280	YG-320	YG-320A
Engine rated power	100KW	97KW	160KW	140KW/160KW	160KW
Push and pull	Cylinder	Motor	Motor	Cylinder	Motor
Maximum drag/feed force	160/100KN	180/180KN	280/280KN	320/320KN	320/320KN
The maximum torque of the powerhead	5000N.n	6000N.n	10000N.n	12000N.n	12000N.n
Powerhead speed	0-180r/min	0-140r/min	0-120r/min	0-140r/min	0-140r/min
Moving speed of powerhead	30m/min	20m/min	20m/min	20m/min	20m/min
Maximum reaming hole diameter	Φ600mm	Φ600mm	Φ750mm	Φ800mm	Φ800mm
Drill rod length (single)	3m	3m	3m	3m	3m
Drill pipe diameter	Φ60mm	Φ60mm	Φ73mm	Φ73mm	Φ73mm
Drill pipe diameter	10-23°	10-22°	10-23°	10-20°	10-20°
Maximum mudflow	160L/min	250L/min	320L/min	320L/min	320L/min
Maximum mud pressure	100bar	80bar	80bar	80bar	80bar
Overall quality	6700kg	8500kg	12500kg	11500kg	11200kg
Dimension(length*width*height)	5700*1820*2400mm	6400*2270*2340mm	7100*2260*2450mm	7100*2250*2450mm	7662*2162*2450mm

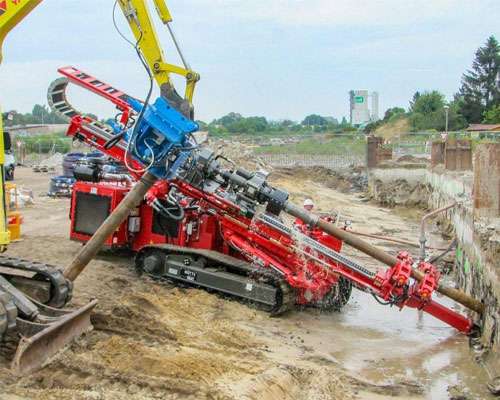

Anchor Drill Rig

Model	YG–MG40	YG–MG50	YG–MG70
Hole depth(m)	10-60	25-70	35-80
Hole diameter(mm)	90-180	90-165	90-200
Rod spec(mm)	Φ76*1500	Φ76*1500/ Φ89*1500	Φ76*1500/ Φ89*1500
Hole angle	0-90°	0-90°	0-90°
Output rotary speed(rpm)	90	70	70
Rated output torque(N*m)	2400	2500	3900
Powerhead max stroke(mm)	1800	1800	1800
Max lifting force(KN)	25	30	35
Powerhead max feeding force(KN)	20	25	25
Hydraulic system-rated pressure(Mpa)	16	17-18	17-18
Rotary electric power	4-pole/7.5kw	Hydraulic	Hydraulic
Oil pump electric power(kW)	4	22	22
Electric voltage	380v	380v	380v
Weight(kg)	1000	1260	1460
Hydraulic station dimension(mm)	640*600*580	1850*780*1360	1850*810*1280
Dimension(mm)	2800*800*1400	3000*780*1360	3100*1000*1500

Frequently Asked Questions

1. How many meters can a water well drill rig drill per day? How efficient is it?
   Depending on the geological conditions of the well, a medium-sized water well drilling rig can complete about 30-80 meters of drilling per day. If it is a soft layer, the efficiency is higher; if it encounters pebbles or interbedded layer, the progress will be slowed down. the YG drilling rig is equipped with a hydraulic automatic feeding system, which ensures the safety and improves the working efficiency at the same time.
2. Do I need to add mud when drilling with a water well drilling rig?
   Yes, the use of mud or water circulation system is recommended in most formations to help cool the drill bit, carry rock chips, and keep the hole wall stable. yg rigs are equipped with a variety of circulation systems to meet the needs of different construction environments.
3. What kind of geological survey applications are core drilling rigs suitable for?
   The core drilling rig is mainly used for core sample extraction of metal mineral resources, coal seams, underground water level, geological structures and so on. It can accurately reflect the geological layers and is an important tool for mine prospecting and scientific research investigation.
4. What factors affect the core drilling depth?
   The drilling depth depends on the equipment torque, the rigidity of the drill pipe, the material of the drill bit and the hardness of the stratum. For example, the YG-CX600 can reach over 600 meters in soft rock formations, but in high hardness granite, it is recommended to core no more than 3 meter sections at a time to ensure sample integrity.
5. Can small water well drilling rigs drill rocks?
   Small drilling rigs (e.g. YG-SP100) are mainly used in soft strata such as soil and sand, and are not recommended for drilling large areas of hard rock. However, if it is equipped with small diameter alloy drill bit, it can be used for shallow drilling operation in thin layer of rock, which is suitable for home or agricultural water source development.
6. Is the small portable drilling rig good for transportation? Is it suitable for rural areas?
   Very suitable. Portable water well drilling rigs generally weigh less than 300kg, and can be manually carried by two people; some models are equipped with small wheels or dismounted design, which is suitable for construction on roadless or sloping land. They are especially suitable for water source development and shallow well construction in remote rural areas.
7. What kind of geology is the Down Hole Drilling Rig suitable for? What’s the difference with normal drilling rigs?
   The Down Hole Drilling Rig is suitable for extremely hard geological formations, it can easily penetrate the rock layer by providing strong striking force through the pneumatic impactor. Compared with ordinary drilling rigs, it has higher efficiency and stable drilling diameter, which is especially suitable for blasthole and anchor hole drilling.
8. How many people are needed to operate the rotary drilling rig? Is there any requirement for the construction site?
   Usually one operator + one co-operator is needed. The rotary drilling rig has high requirements on the site, which should ensure the ground is level and there is enough space for lifting and steering. In order to ensure the accuracy of the hole position, it is recommended to lay out the line and compact the site in advance.
9. Can rotary drilling rigs be used for seepage control construction?
   Yes, rotary drilling rigs can be used for seepage control. YG rotary drilling rig is commonly used in diaphragm wall and dam seepage control projects, forming a continuous and closed reinforcement layer through high-pressure grouting to prevent groundwater infiltration.YG rotary drilling rig is widely used in subway station enclosure projects because of the uniformity of grout spraying and flexible control.
10. Is one drill rig compatible with multiple drill bits?
    Most drill rigs support changing drill bits to suit different formations. YG rigs support a wide range of drill bit types such as alloy, diamond, triplex, spiral, etc., which ensures drilling compatibility and cost control.
11. What are the safety precautions during drilling?
    Be sure to complete equipment checks (connections, hydraulics, speed) before operation. Wear helmets, goggles, and noise-proof earmuffs during operation. When the drilling rig is running, it is strictly prohibited to touch the drill pipe, belt, or turntable area with hands. The construction site should be kept dry and stable to avoid tipping over.

12. Can YG provide after-sales service and spare parts support?
    Of course, YG Machinery provides worldwide after-sales technical support, including remote guidance, video teaching, express delivery of spare parts, etc. For bulk purchase customers, YG Machinery can also provide after-sales technical support. For bulk purchase, we can also send technicians to guide the installation and operation on site.
13. Can your drill rigs be exported to Europe/Africa?
    Yes, YG has rich export experience, the equipment supports CE, ISO certification, and can be customized according to the local voltage/engine standard, the transportation method includes the whole machine or CKD/SKD disassembled packaging, applicable to many countries and regions around the world.
14. How to choose the right drill rig for you?
    suggests you consider according to the following factors:
    a. Construction depth and hole diameter (e.g. SP100 is recommended within 100 meters)
    b. Geological conditions (soft soil, water layer, pebble layer or hard rock)
    c. Budget and frequency of use (small equipment for temporary use, tracked recommended for long term operation)
    If you are not sure, welcome to contact us for 1-to-1 selection advice.【WhatsApp/WeChat/Phone】+86 13837115193.
